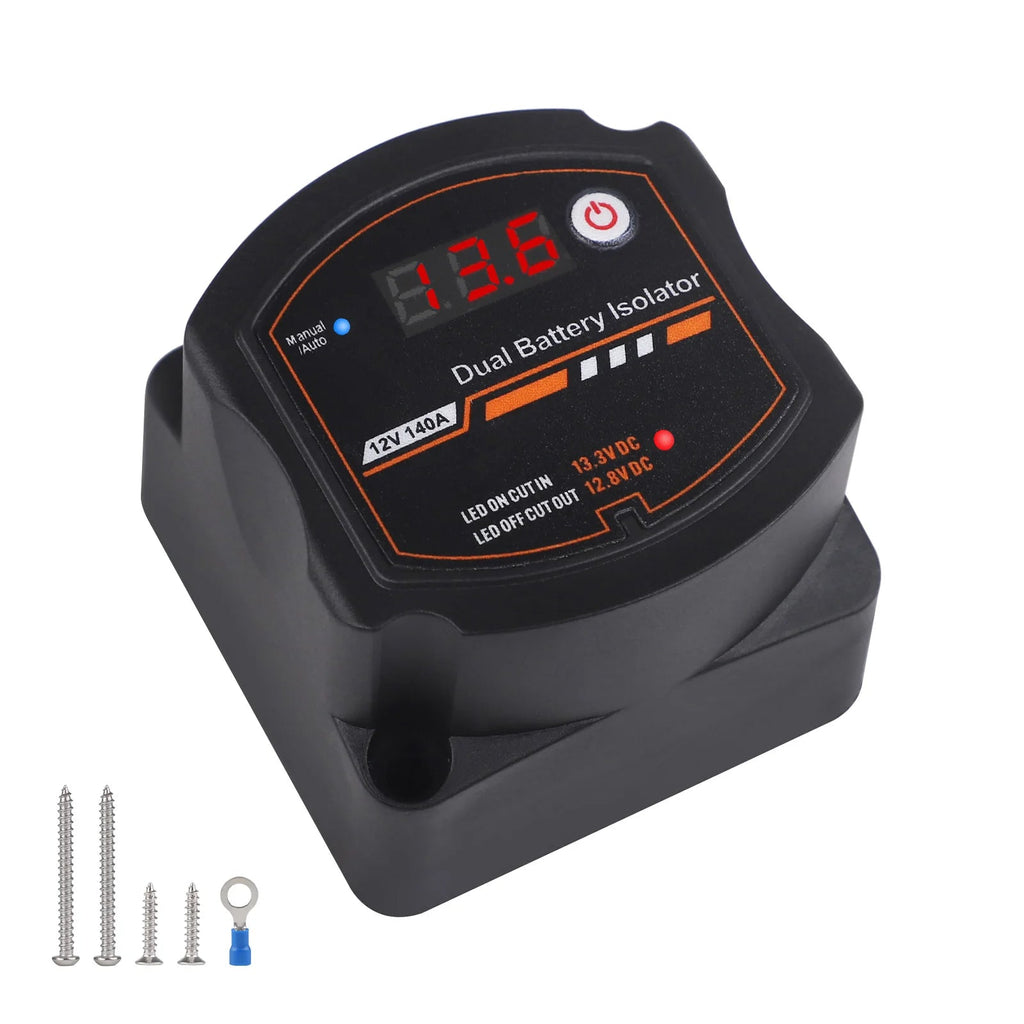

Digital VSR Battery Isolator 12V 140A with red LED voltmeter display, power button and mounting screws

Digital VSR Battery Isolator

$119.00
$119.00 $159.00
Skip to product information
Digital VSR Battery Isolator 12V 140A with red LED voltmeter display, power button and mounting screws
  • Digital VSR Battery Isolator 12V 140A with red LED voltmeter display, power button and mounting screws

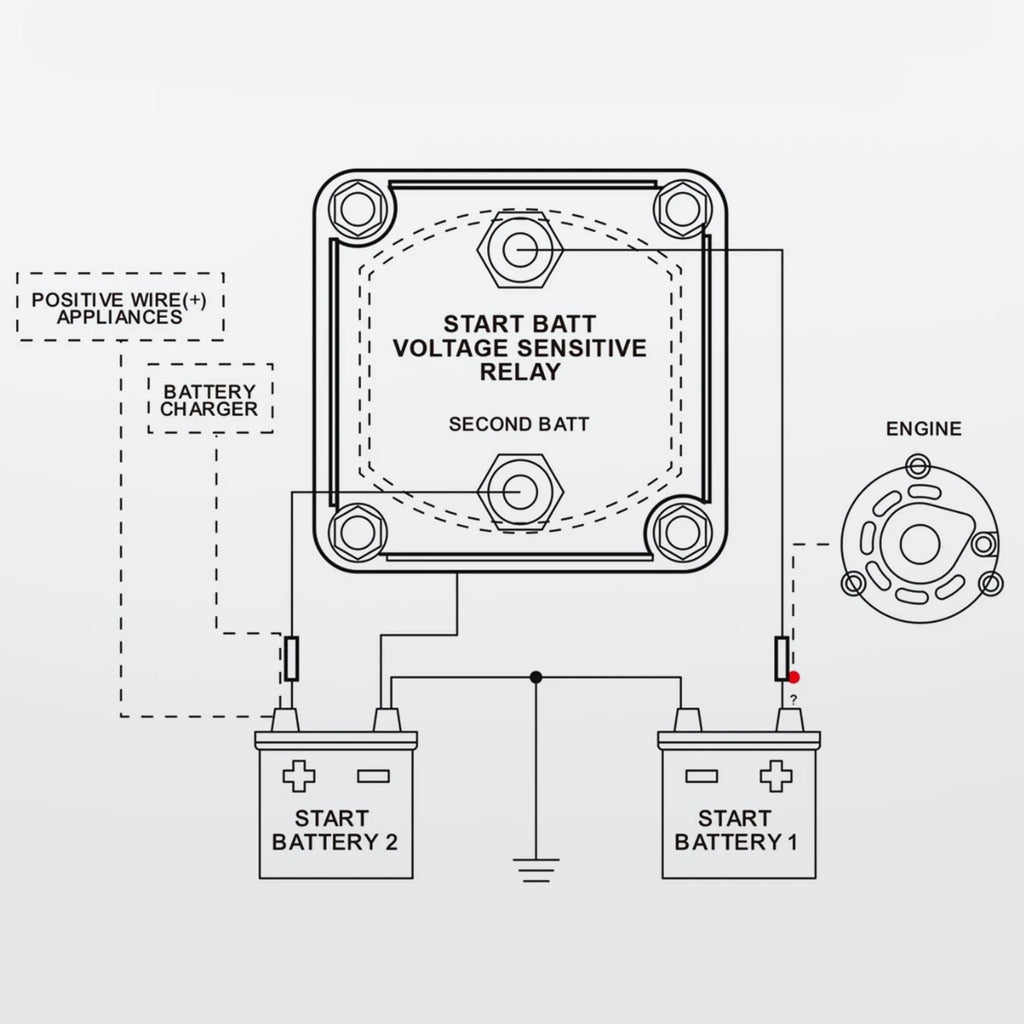

  • Digital VSR Battery Isolator wiring diagram linking start battery 1, start battery 2, engine and battery charger

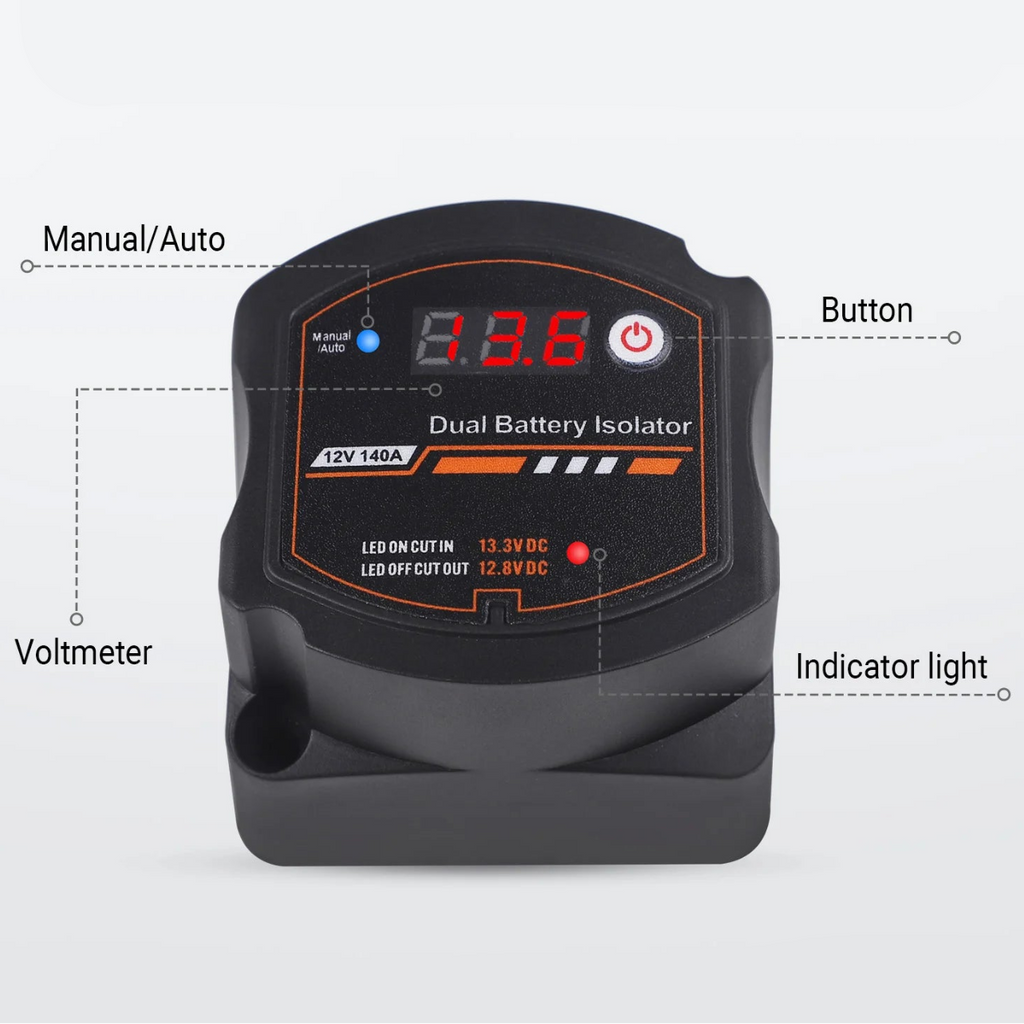

  • Digital VSR Battery Isolator labelled features: manual/auto mode, power button, voltmeter and indicator light

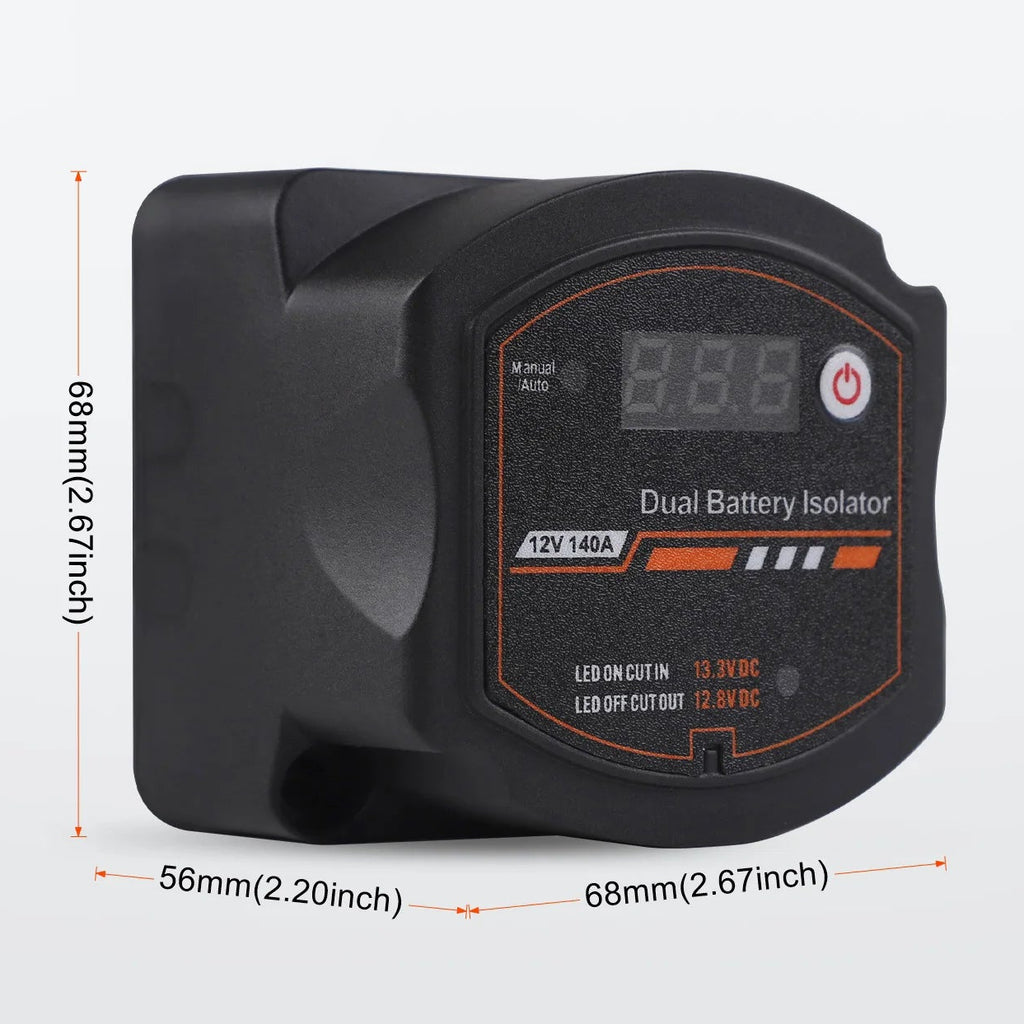

  • Digital VSR Battery Isolator dimensions 68mm high, 68mm wide and 56mm deep
  • Digital VSR Battery Isolator 12V 140A with red LED voltmeter display, power button and mounting screws
  • Digital VSR Battery Isolator wiring diagram linking start battery 1, start battery 2, engine and battery charger
  • Digital VSR Battery Isolator labelled features: manual/auto mode, power button, voltmeter and indicator light
  • Digital VSR Battery Isolator dimensions 68mm high, 68mm wide and 56mm deep
Digital VSR Battery Isolator

Digital VSR Battery Isolator

$119.00
$119.00 $159.00
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Description

Split-charge two 12V batteries with a compact, IP65-rated voltage sensitive relay that displays real-time voltage and draws zero current in storage mode.

  • Starter Battery Protection: Combines both batteries while charging above 13.3V and isolates them below 12.8V so accessories cannot drain the starter battery.
  • Real-Time Voltage Display: An integrated digital voltmeter shows live system voltage for quick at-a-glance monitoring.
  • No Diode Voltage Drop: Relay-based switching avoids the approx. 0.6V loss of diode isolators, delivering full alternator voltage to the auxiliary battery.
  • Engine Bay Rated: Glass-fibre reinforced nylon enclosure with IP65 sealing and ISO 8846 ignition protection for engine bay and marine use.
  • Zero-Draw Storage Mode: An optional storage mode cuts standby consumption to 0 mA to preserve battery charge during long-term parking.
Specifications
  • Material: Glass-fibre reinforced nylon, ABS and metal
  • Rating: 12V DC; 100–125A continuous, 140A intermittent
  • Cut-In / Cut-Out Voltage: 13.3V / 12.8V
  • Power Consumption: 10 mA standby, 330 mA engaged, 0 mA storage mode
  • Terminal Studs: M6 (1/4 inch)
  • Water Resistance: IP65
  • Dimensions: 8 x 8 x 7 cm
  • Included: 1x 140A Digital Voltage Sensitive Relay, 2x Long Mounting Screws, 2x Short Mounting Screws, 1x Crimp Terminal, and 1x Instruction Manual. Battery cables not included.
