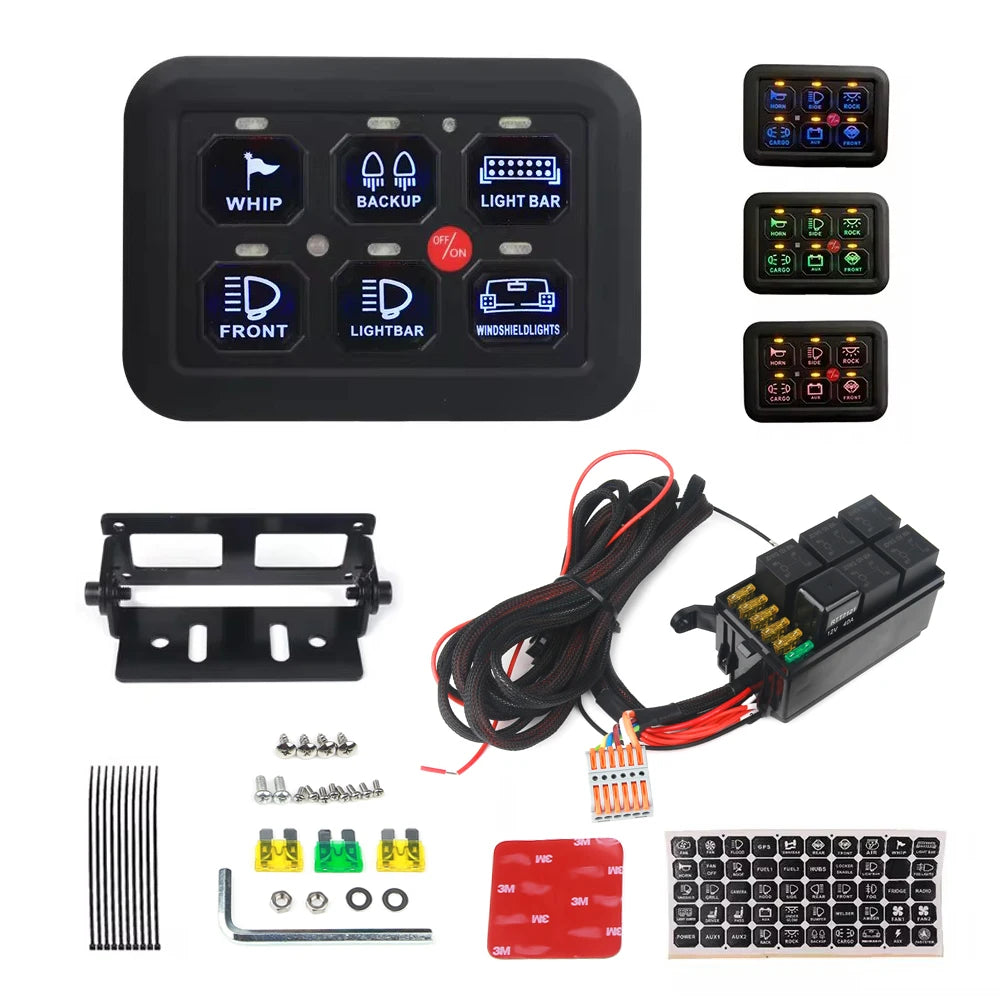

  • 6-Gang Touch Switch Panel with backlit switch labels, relay box wiring harness, mounting bracket, fuses, label sticker sheet and hardware

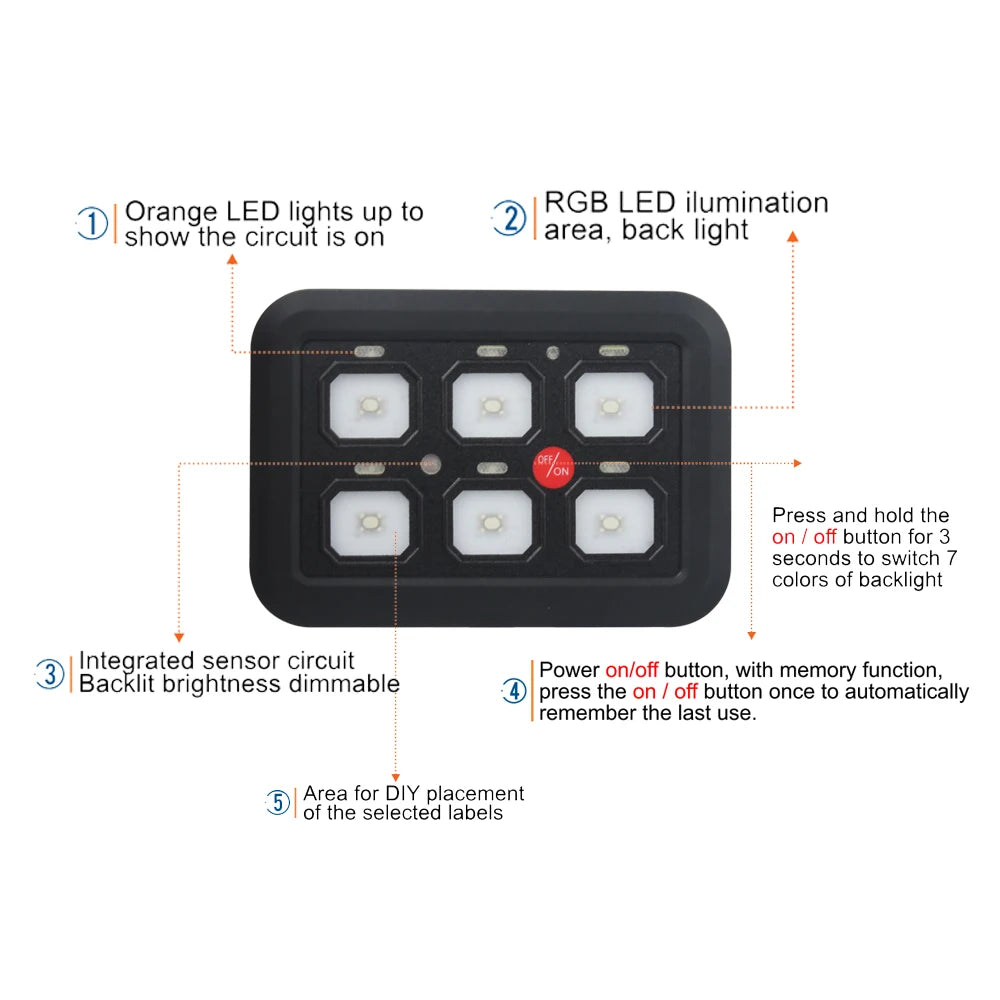

  • 6-Gang Touch Switch Panel features diagram showing circuit indicator lights, RGB backlight, dimmable brightness and on/off button with memory

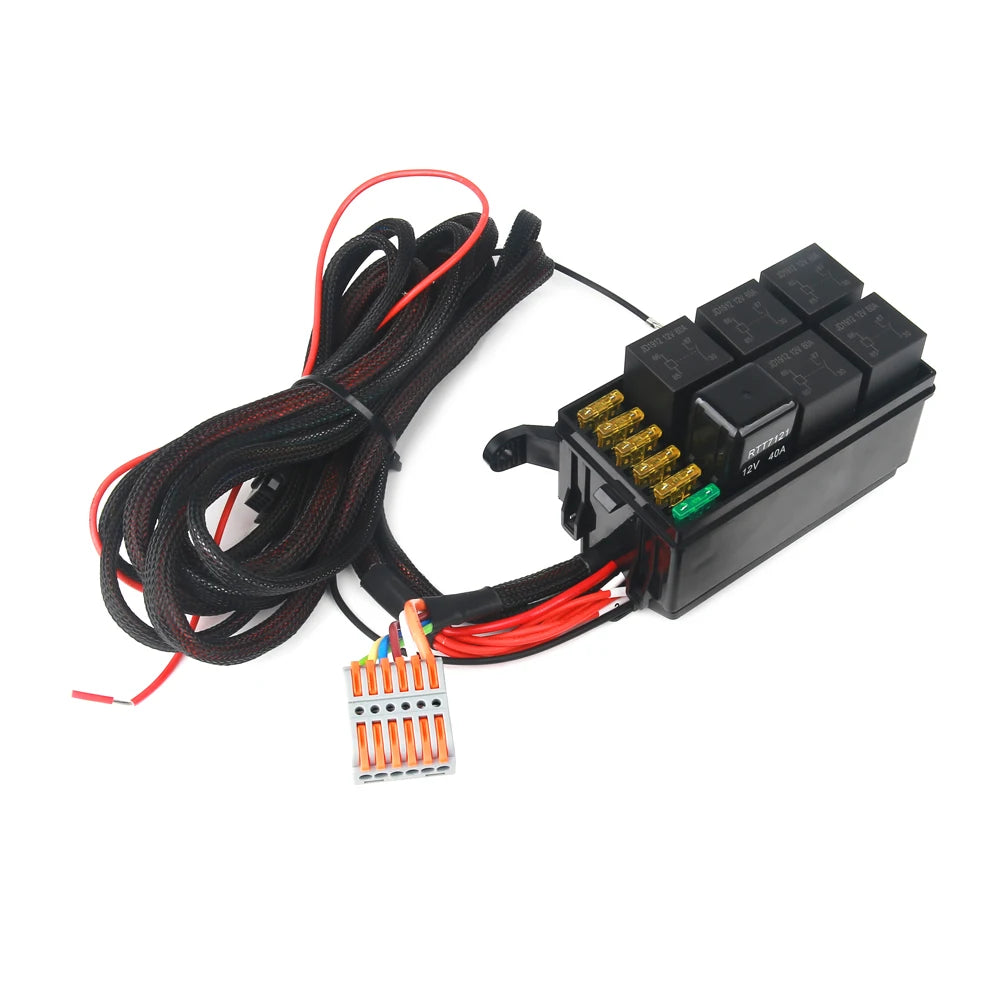

  • 6-Gang Touch Switch Panel relay and fuse box with braided wiring harness and push-in wire connectors

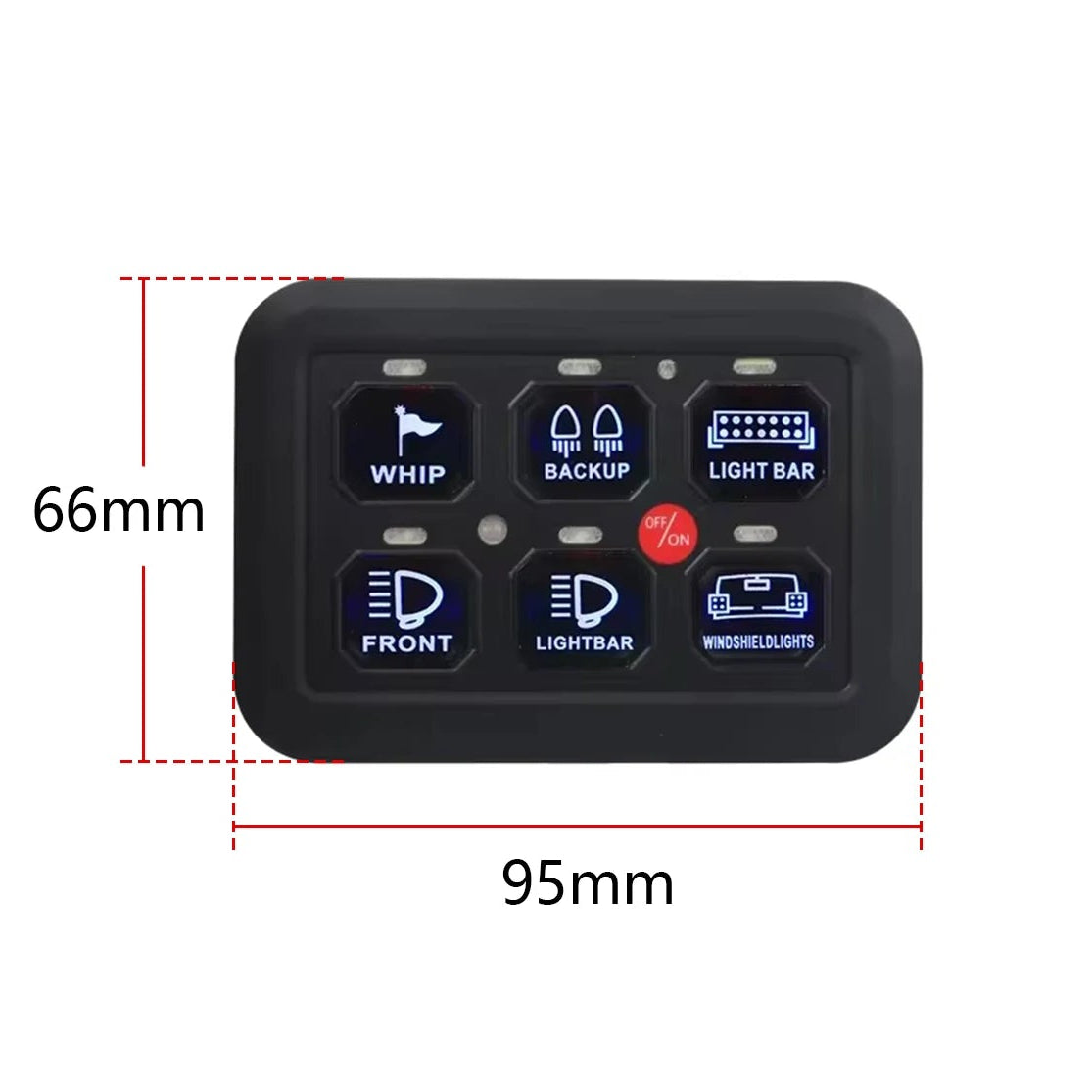

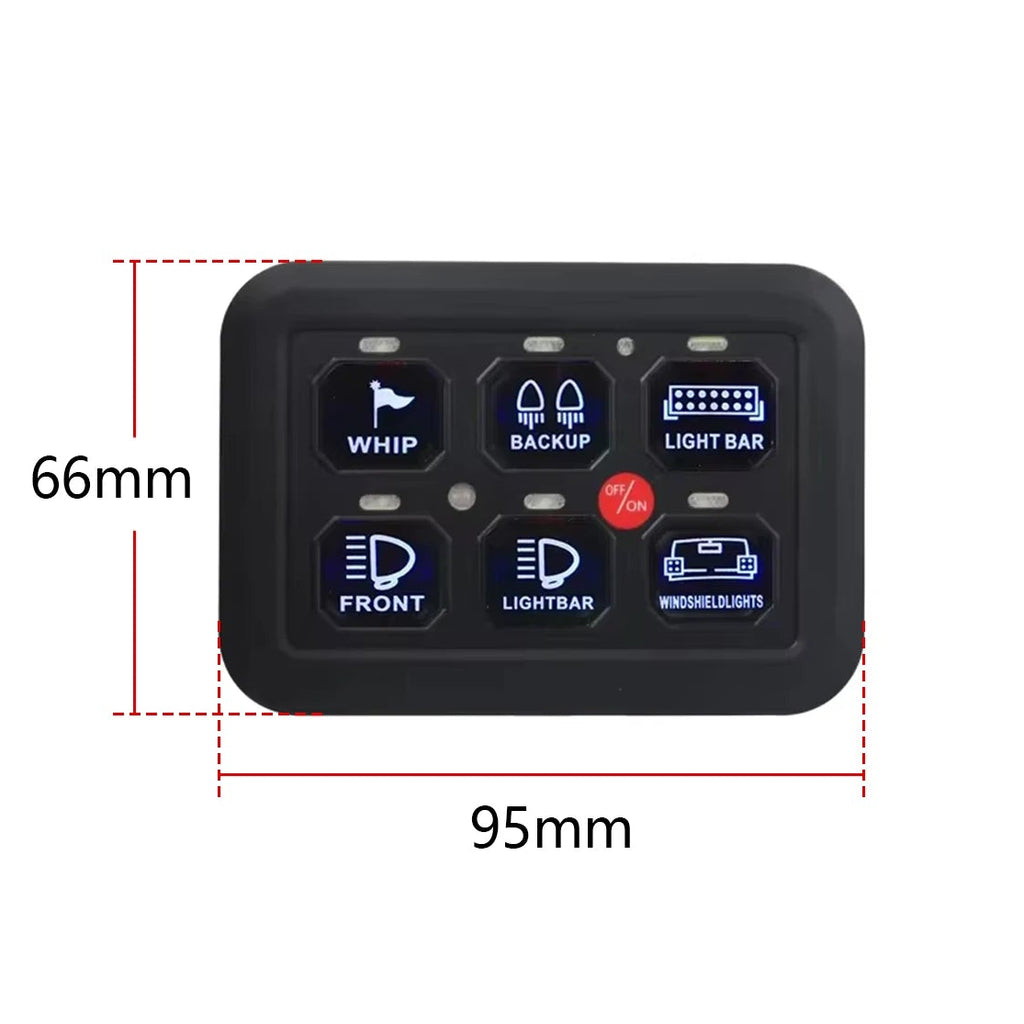

  • 6-Gang Touch Switch Panel dimensions: 95 mm wide by 66 mm high, with blue backlit switches
  • 6-Gang Touch Switch Panel with backlit switch labels, relay box wiring harness, mounting bracket, fuses, label sticker sheet and hardware
  • 6-Gang Touch Switch Panel features diagram showing circuit indicator lights, RGB backlight, dimmable brightness and on/off button with memory
  • 6-Gang Touch Switch Panel relay and fuse box with braided wiring harness and push-in wire connectors
  • 6-Gang Touch Switch Panel dimensions: 95 mm wide by 66 mm high, with blue backlit switches
6-Gang Touch Switch Panel

6-Gang Touch Switch Panel

$299.00
$299.00
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Description

Control up to six 12V accessories from one backlit touch panel connected to a fused, pre-wired relay box.

  • Six Relay Circuits: Each touch key switches a dedicated 40A relay, so light bars, spotlights and accessories run on their own fused circuit.
  • Pre-Wired Relay Box: The relay and fuse box comes wired with a braided harness and lever connectors for the six output circuits.
  • 7-Colour Backlight: Holding the power key for three seconds changes the backlight colour, and the brightness is dimmable for night driving.
  • Circuit Memory: The master on/off key remembers which circuits were active the last time it was used.
  • Custom Labels: Includes 80 decals so each key can be labelled for the accessory it controls.
Specifications
  • Material: ABS polymer control panel with steel mounting bracket
  • Operating Voltage: 12V DC
  • Relays: 6x 40A
  • Circuit Protection: Blade fuses: 1x 30A, 3x 20A, 2x 15A
  • Maximum Load: 600W rated by the supplier
  • Panel Dimensions: 95 x 66 mm
  • Backlight: RGB, 7 colours, dimmable, with orange indicator LED per circuit
  • Installation: No instructions included. Professional installation by an auto electrician is recommended.
  • Included: 1x 6-Gang Touch Control Panel, 1x Relay and Fuse Box with Wiring Harness, 1x Mounting Bracket, 1x Hex Key, Mounting Screws and Nuts, 1x 3M Adhesive Pad, Cable Ties, Wire Connectors and 1x Label Decal Sheet (80 labels).
