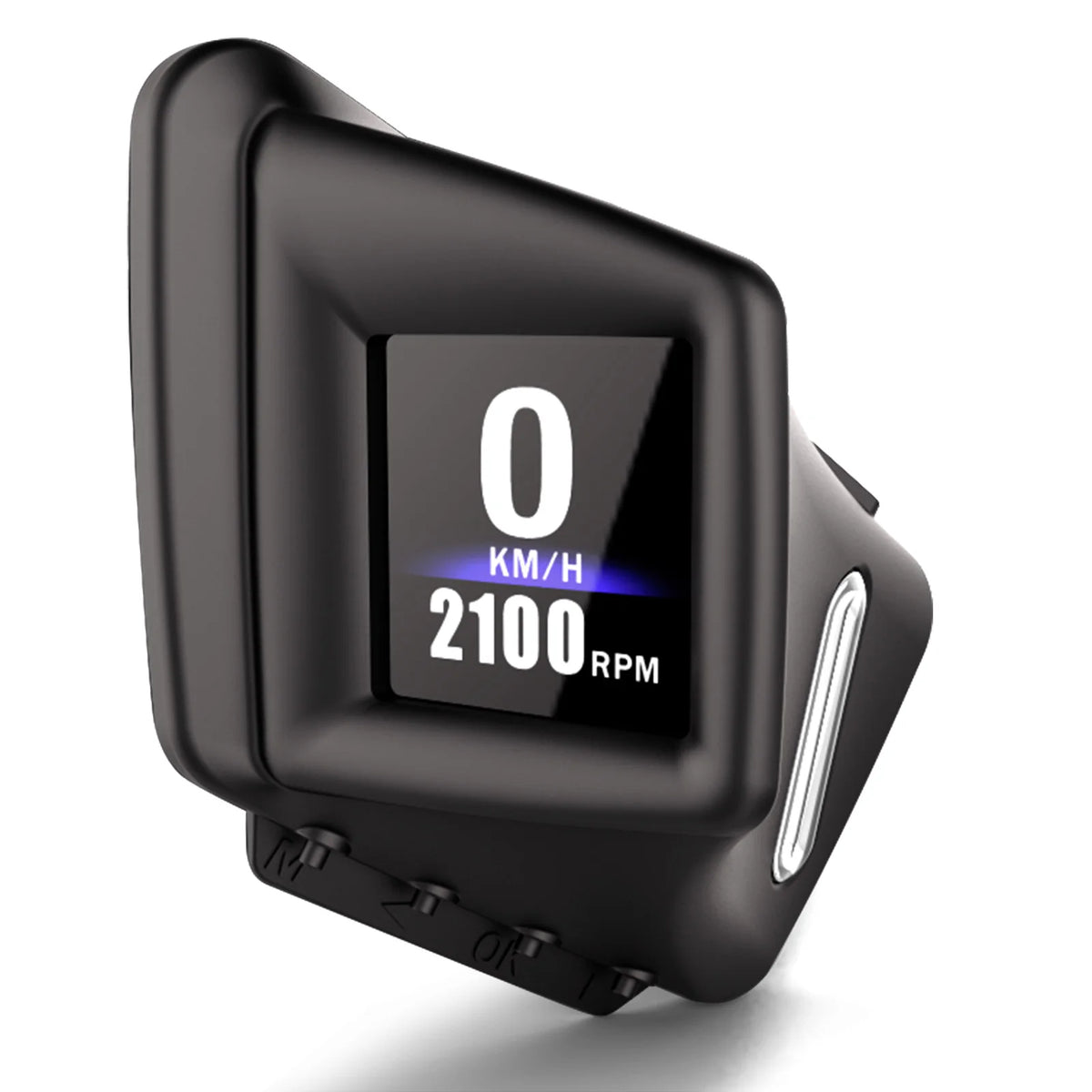

A-Pillar OBD2 GPS Gauge in black showing 0 km/h and 2100 RPM on a colour display on white background

A-Pillar OBD2 GPS Gauge

$179.00
$179.00
Skip to product information
A-Pillar OBD2 GPS Gauge in black showing 0 km/h and 2100 RPM on a colour display on white background
  • A-Pillar OBD2 GPS Gauge in black showing 0 km/h and 2100 RPM on a colour display on white background

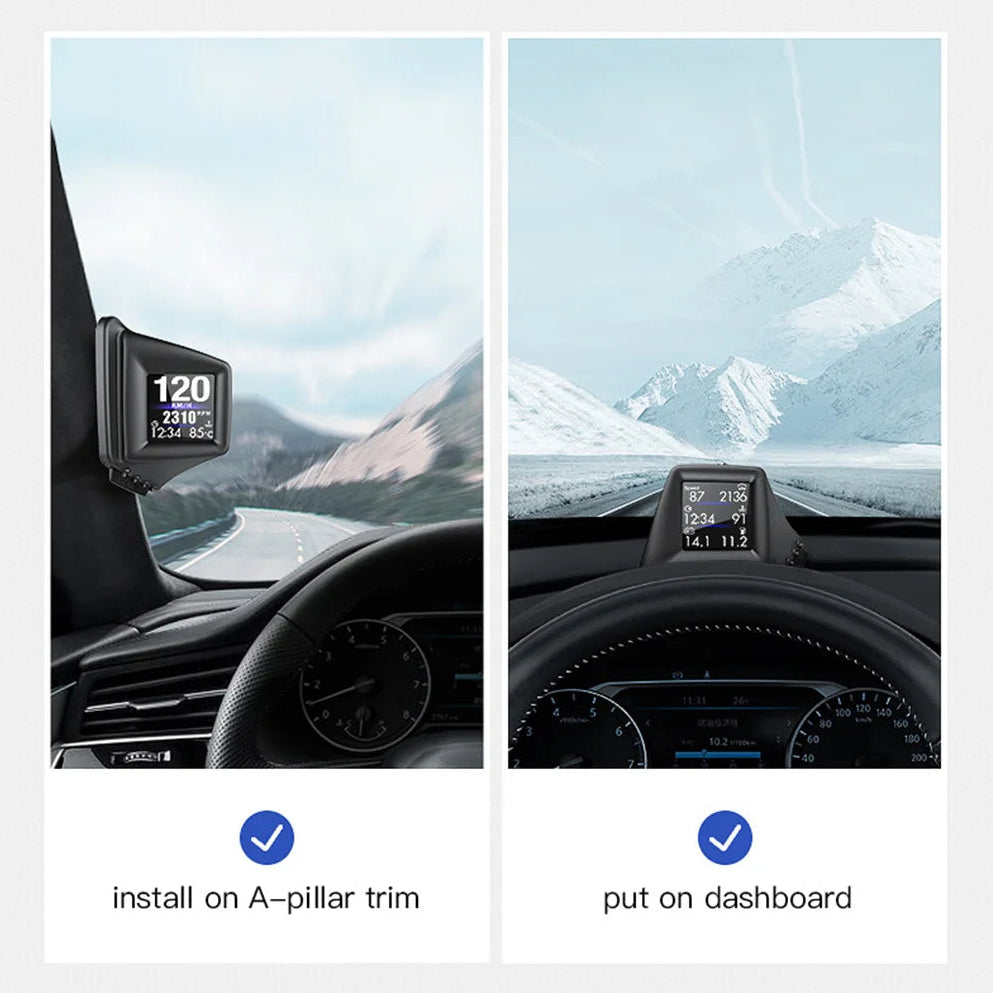

  • A-Pillar OBD2 GPS Gauge mounting options shown installed on a car A-pillar trim and placed on a dashboard

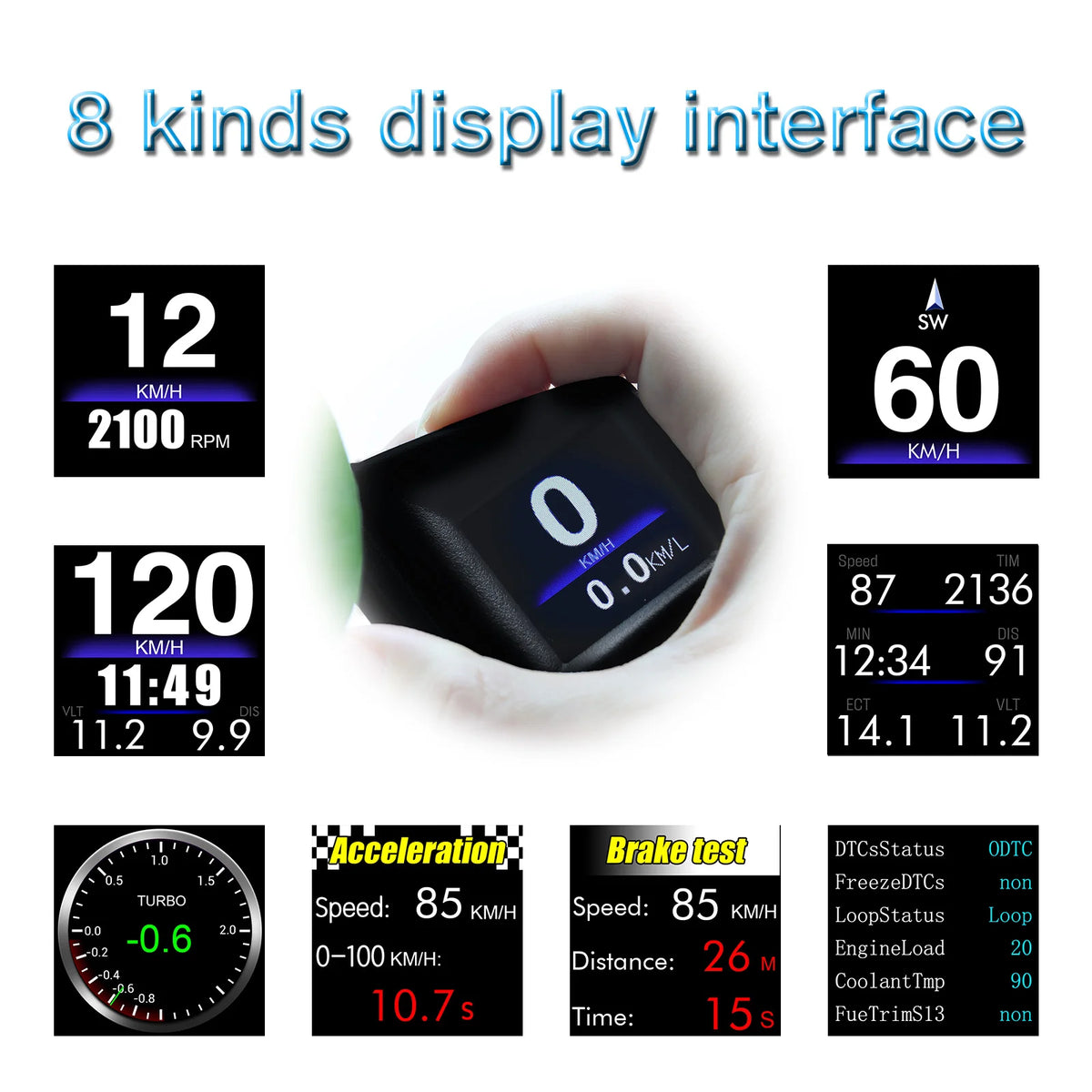

  • A-Pillar OBD2 GPS Gauge eight display modes including speed, RPM, compass, turbo boost, acceleration, brake test and diagnostics

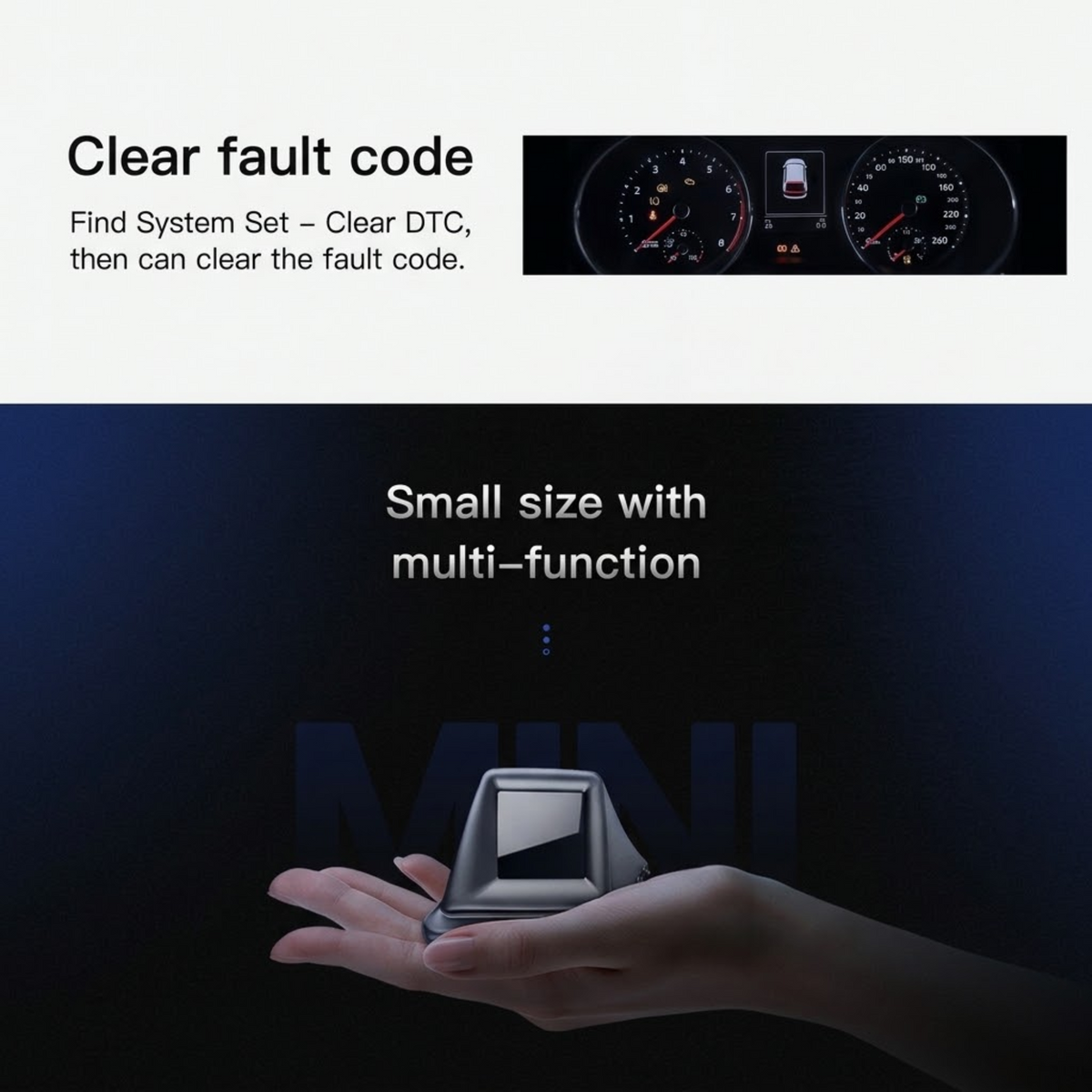

  • A-Pillar OBD2 GPS Gauge clear fault code function and compact gauge held in the palm of a hand

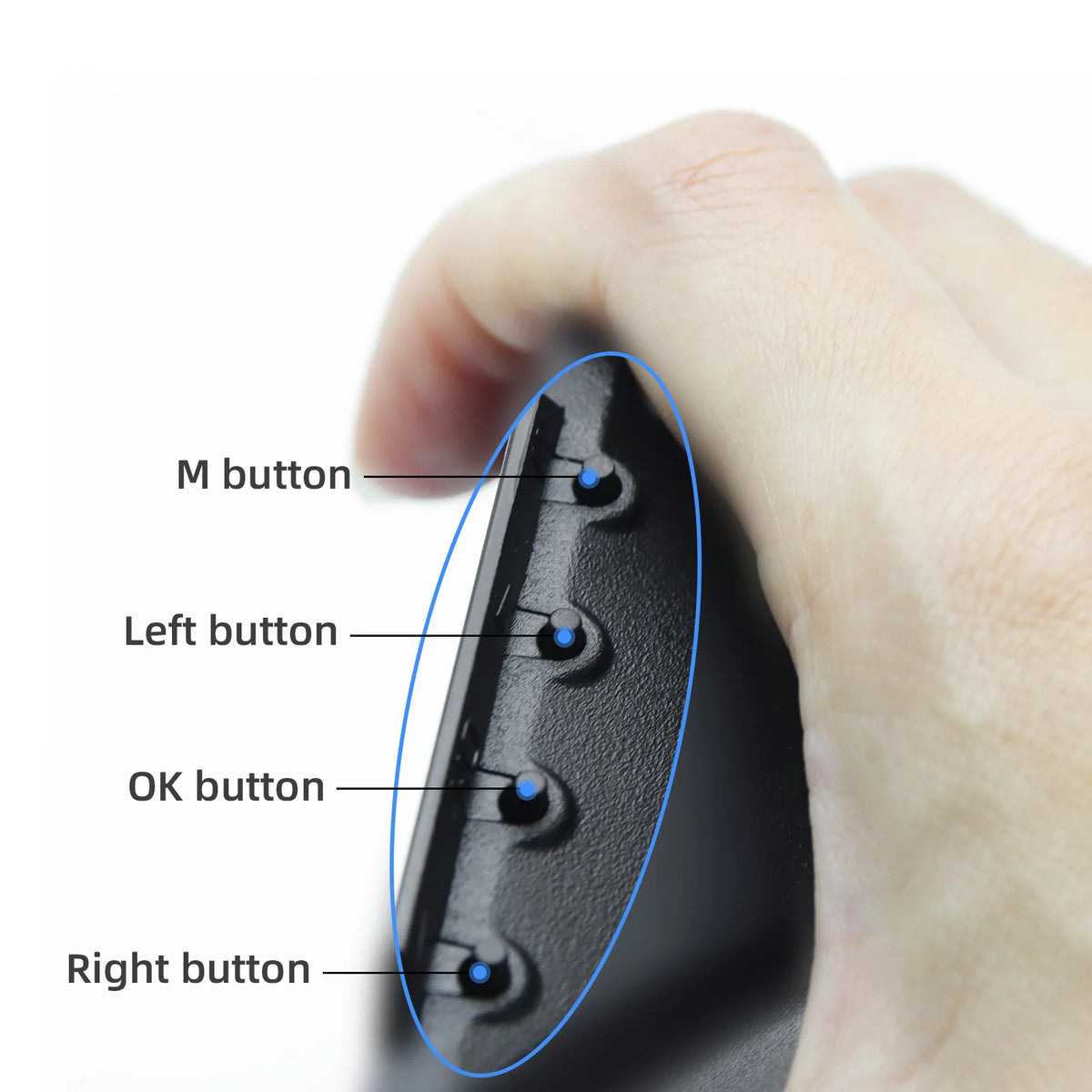

  • A-Pillar OBD2 GPS Gauge close-up of the M, left, OK and right control buttons on the side of the unit

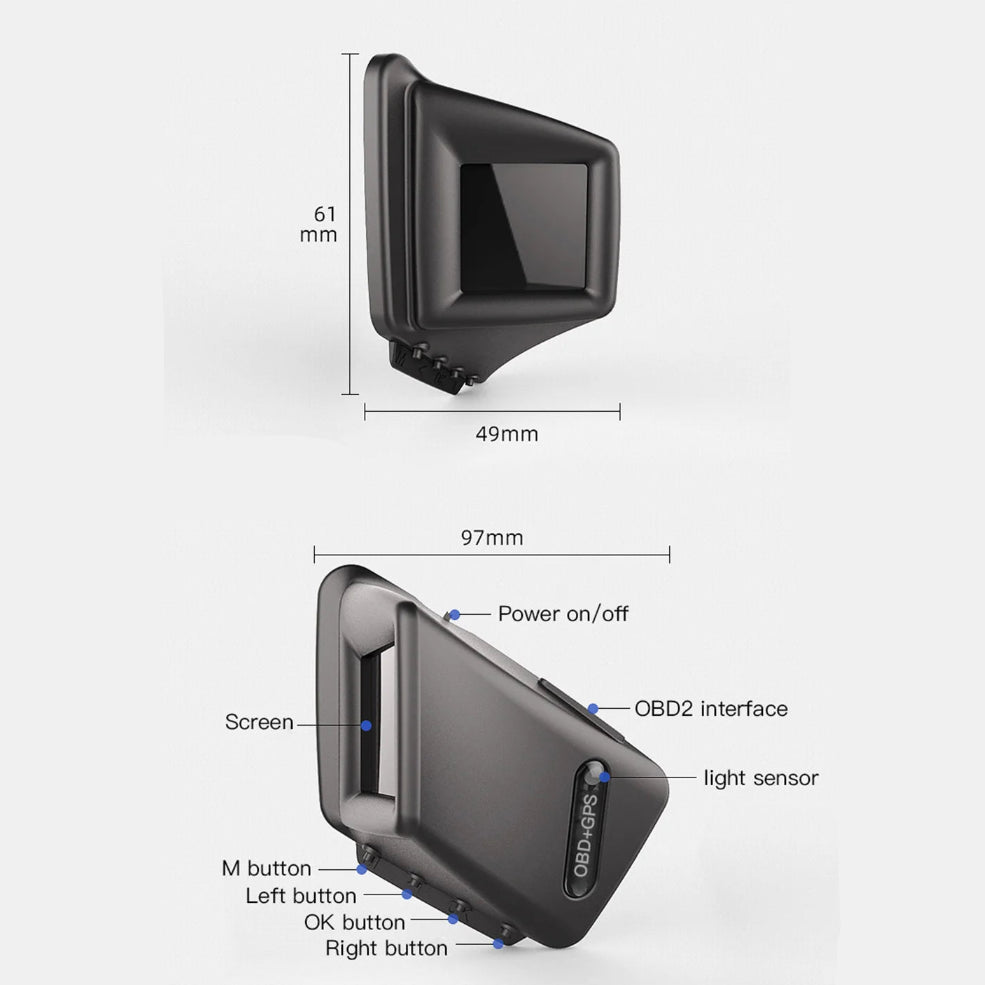

  • A-Pillar OBD2 GPS Gauge dimensions diagram showing 97 mm by 61 mm by 49 mm with power button, OBD2 port and light sensor
  • A-Pillar OBD2 GPS Gauge in black showing 0 km/h and 2100 RPM on a colour display on white background
  • A-Pillar OBD2 GPS Gauge mounting options shown installed on a car A-pillar trim and placed on a dashboard
  • A-Pillar OBD2 GPS Gauge eight display modes including speed, RPM, compass, turbo boost, acceleration, brake test and diagnostics
  • A-Pillar OBD2 GPS Gauge clear fault code function and compact gauge held in the palm of a hand
  • A-Pillar OBD2 GPS Gauge close-up of the M, left, OK and right control buttons on the side of the unit
  • A-Pillar OBD2 GPS Gauge dimensions diagram showing 97 mm by 61 mm by 49 mm with power button, OBD2 port and light sensor
A-Pillar OBD2 GPS Gauge

A-Pillar OBD2 GPS Gauge

$179.00
$179.00
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Description

A compact colour gauge that mounts on the A-pillar or dashboard and switches between eight live data screens from the engine computer or GPS.

  • Eight Display Interfaces: Switch between speed and RPM, compass speed, multi-function, six-reading and turbo boost screens, plus acceleration test, brake test and live data stream.
  • Dual OBD2 & GPS Modes: OBD2 mode reads speed, RPM, coolant and oil temperature, voltage, boost and fuel consumption; GPS mode shows speed, distance, altitude and satellite count.

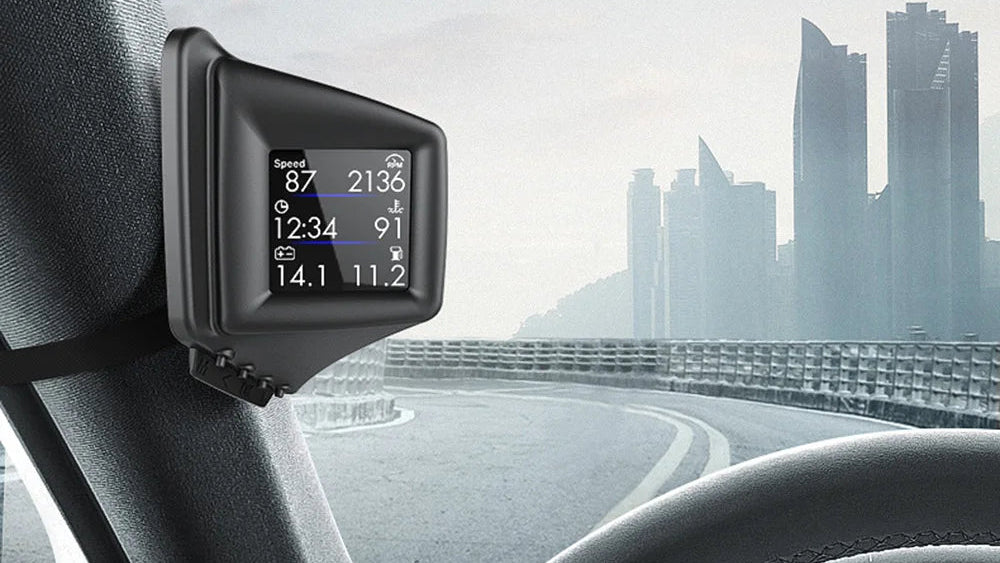

  • A-Pillar or Dash Mounting: The angled housing sits on the A-pillar trim within peripheral vision, or on the dashboard, secured with the included Velcro strip.
  • Fault Code Clearing: Reads the ECU data stream and clears stored fault codes from the system menu.
  • Performance Testing: Times 0–100 km/h acceleration and measures braking distance and time from 100 km/h to a stop.
Specifications
  • Display: Colour digital screen with automatic light sensor
  • Dimensions: 97 x 61 x 49 mm
  • Controls: M, Left, OK and Right buttons, power button
  • Systems: OBD2/EOBD + GPS (OBD2 mode by default)
  • Alarms: Overspeed, coolant temperature and voltage (OBD2 mode); overspeed and low voltage (GPS mode)
  • Compatibility: OBD2 mode requires a petrol vehicle with OBD2/EOBD. Not compatible with diesel or hybrid vehicles, vehicles with modified ECUs, or models from Fiat Group, Chrysler Group, Peugeot, Citroën, Renault and some Mazda, Suzuki, Honda, Kia and Hyundai models. Boost readout requires a turbocharged engine
  • Included: 1x OBD2 + GPS Gauge, 1x OBD2 Cable, 1x Velcro Mounting Strip and 1x User Manual.
