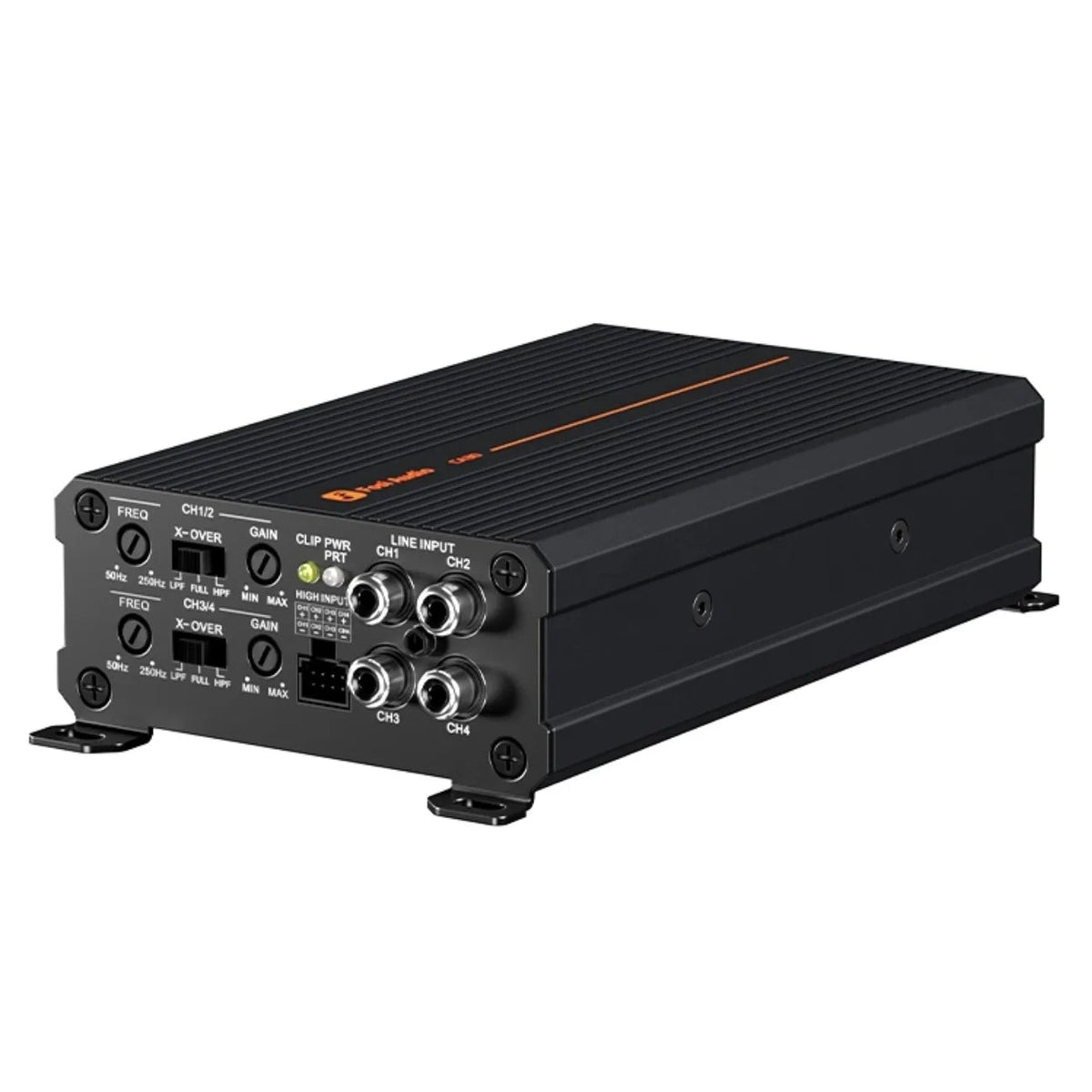

  • Compact Class D Amplifier, 4-channel black car audio amplifier with orange accent line

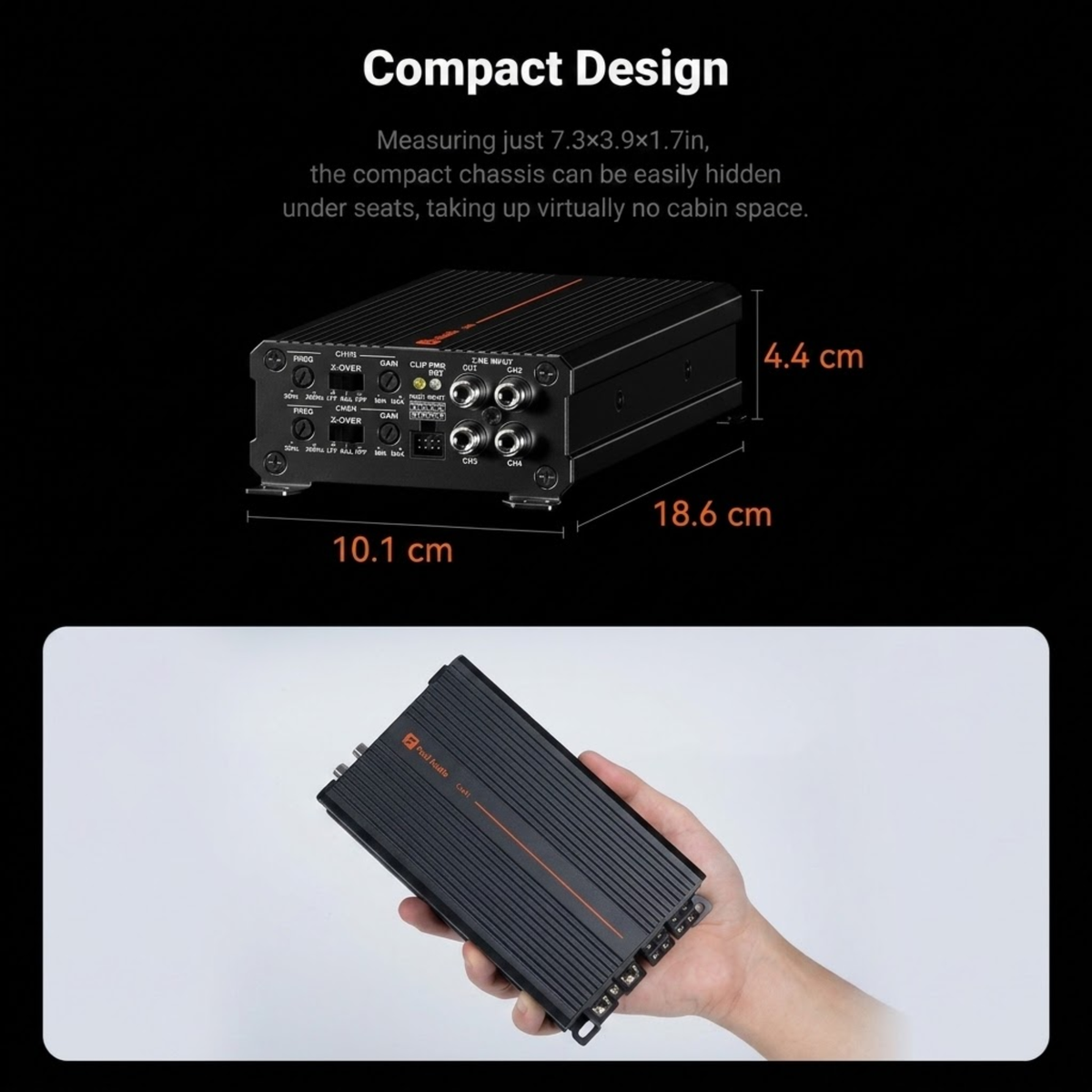

  • Compact Class D Amplifier shown in a hand to demonstrate its compact 18.6 x 10.1 x 4.4cm size

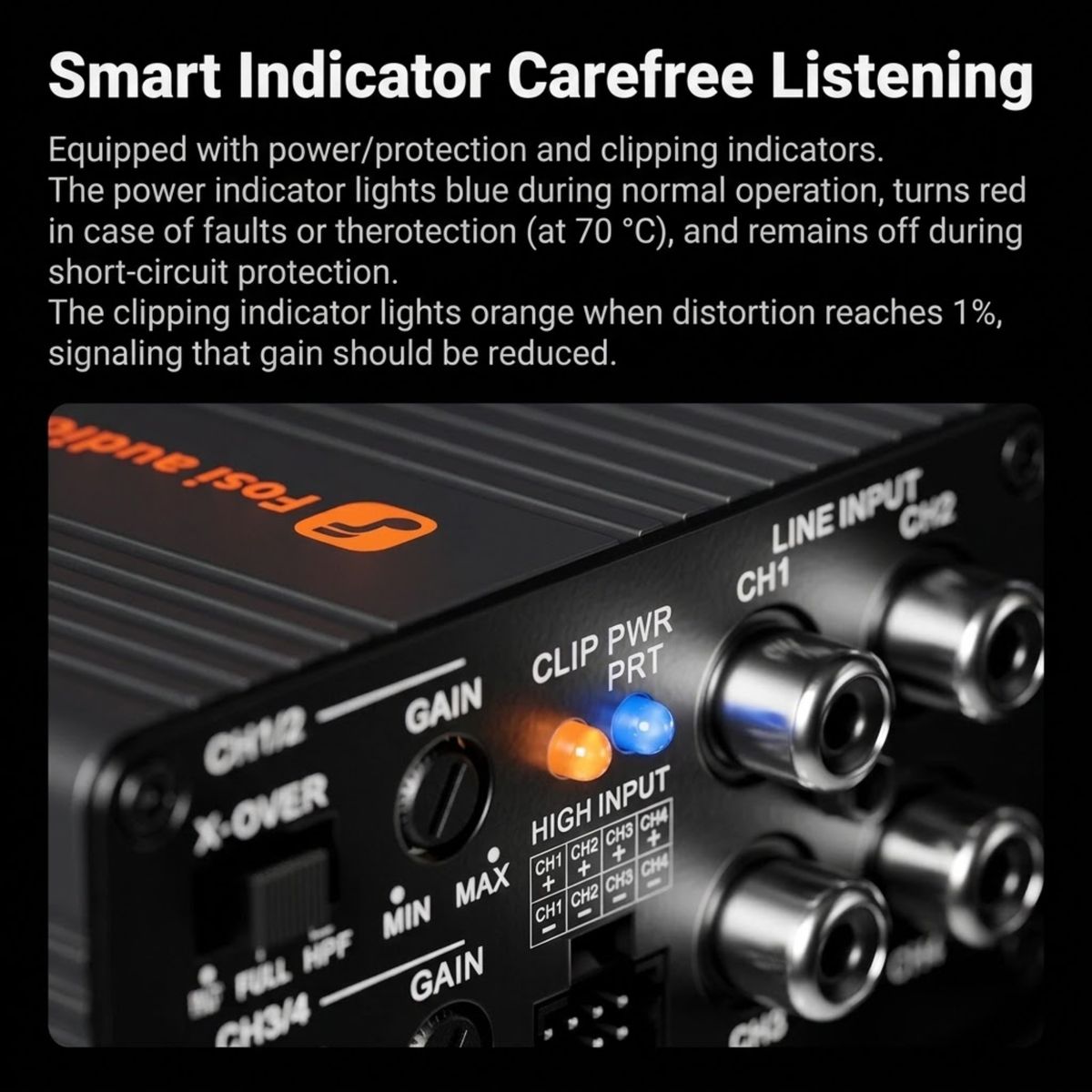

  • Close-up of Compact Class D Amplifier power and clipping indicator lights and RCA line inputs

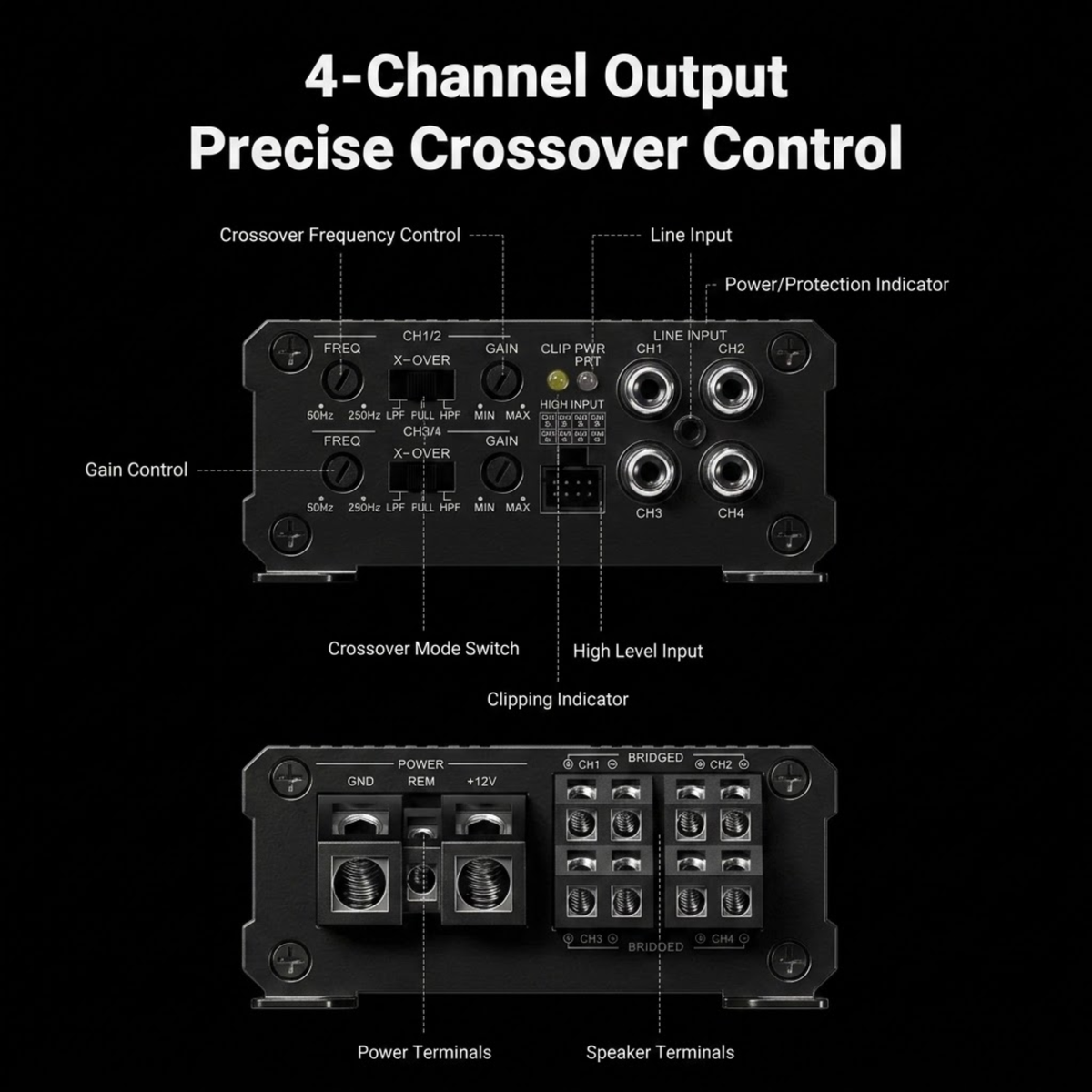

  • Labelled diagram of Compact Class D Amplifier controls including crossover, gain and power terminals

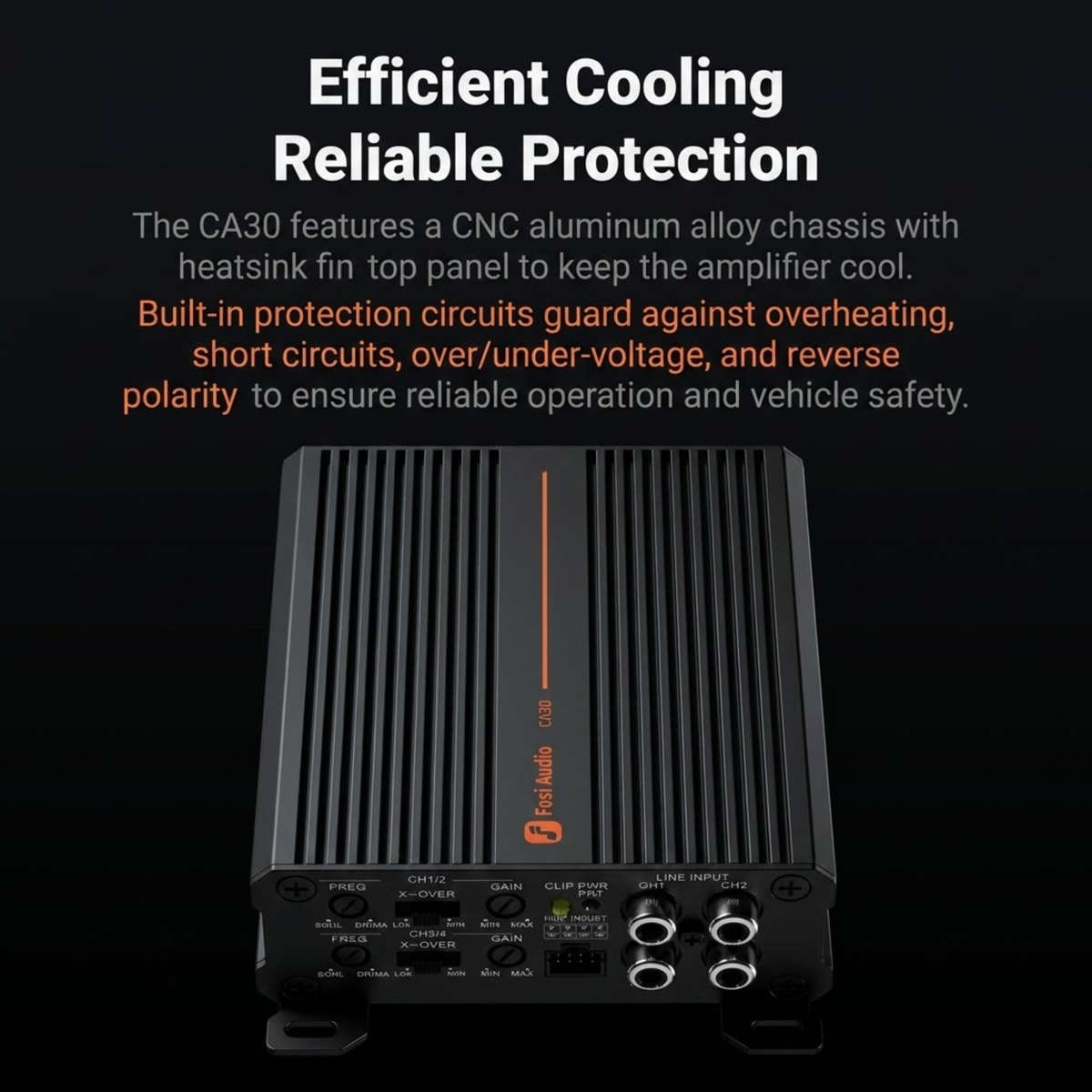

  • Compact Class D Amplifier CNC aluminium chassis with heatsink fins for efficient cooling

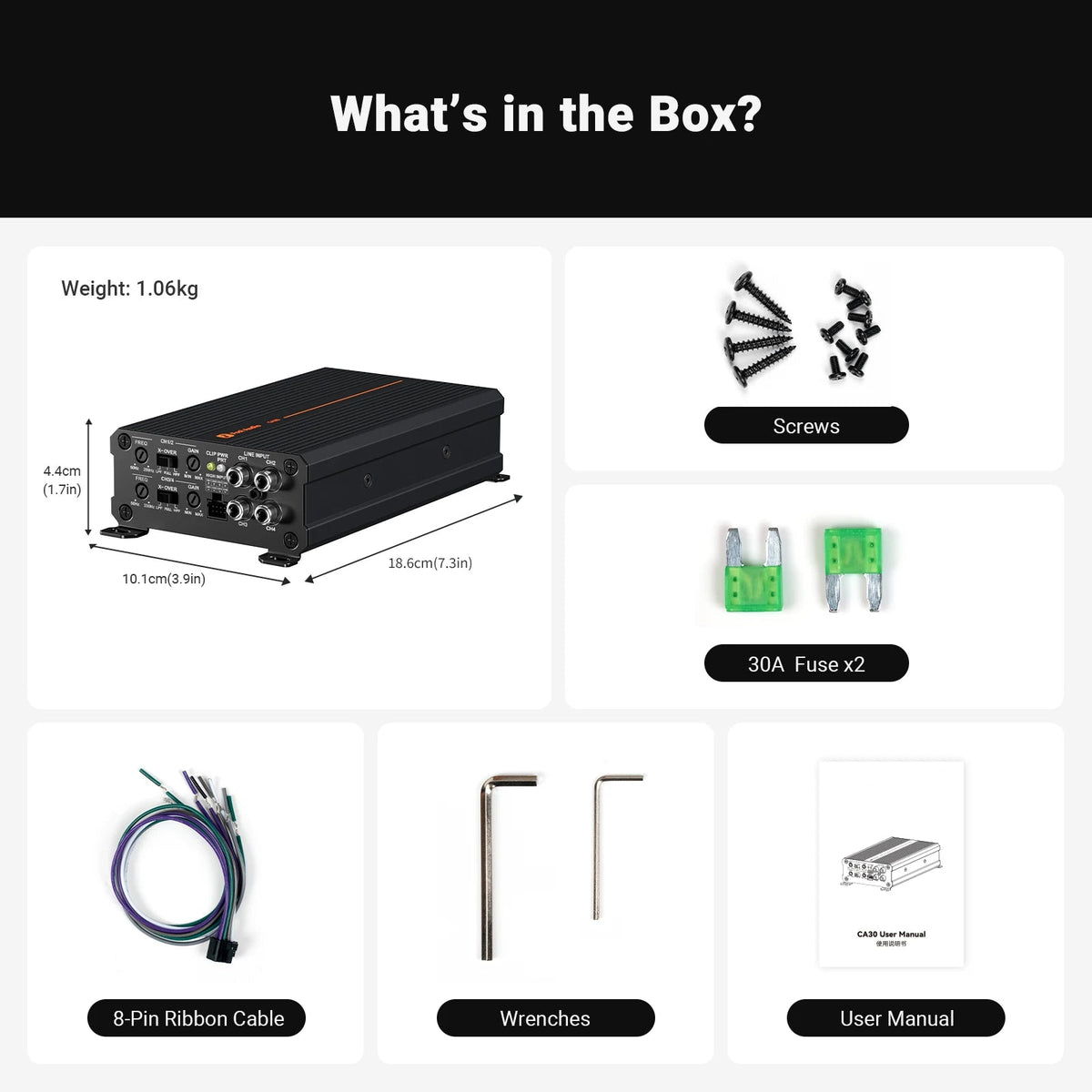

  • Compact Class D Amplifier package contents including screws, fuses, ribbon cable and manual
  • Compact Class D Amplifier, 4-channel black car audio amplifier with orange accent line
  • Compact Class D Amplifier shown in a hand to demonstrate its compact 18.6 x 10.1 x 4.4cm size
  • Close-up of Compact Class D Amplifier power and clipping indicator lights and RCA line inputs
  • Labelled diagram of Compact Class D Amplifier controls including crossover, gain and power terminals
  • Compact Class D Amplifier CNC aluminium chassis with heatsink fins for efficient cooling
  • Compact Class D Amplifier package contents including screws, fuses, ribbon cable and manual
Compact Class D Amplifier

Compact Class D Amplifier

$579.00
$579.00 $194.44
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Description

Upgrade factory car audio with a compact 4-channel Class D amplifier delivering 100W per channel and HiFi-grade clarity.

  • HiFi-Grade Output: Delivers 100W RMS per channel at 4 ohms (320W bridged at 4 ohms) with a signal-to-noise ratio above 100dB for clear, low-distortion sound.
  • Ultra-Compact Housing: Measures 186 x 101 x 44.2mm, fitting under seats or in the glovebox without sacrificing cabin space.
  • High-Efficiency Class D Design: The Infineon IR4322 Class D amplifier chip runs at 88% efficiency, generating minimal heat during extended use.
  • Built-In Protection Circuitry: LED indicators flag overheating, short circuits and signal clipping, with a delay-mute circuit to eliminate turn-on and turn-off pops.
  • Broad Vehicle Compatibility: A wide 10-16V input range supports petrol and electric vehicles, with four independent channels for 2-8 ohm speakers and 4 ohm subwoofers.
Specifications
  • Amplifier Chip: Infineon IR4322 (Class D)
  • Material: Aluminium unibody with linear heat sinks
  • RMS Power: 100W x4 @ 4 ohms, 320W x2 bridged @ 4 ohms
  • Frequency Response: 10Hz-40kHz
  • Input Sensitivity: 0.75-8V
  • Dimensions: 186 x 101 x 44.2mm
  • Included: 1x CA30 Amplifier, User Manual, Mounting Screws, 2x 30A Fuses, 8-Pin Ribbon Cable, Wrenches
