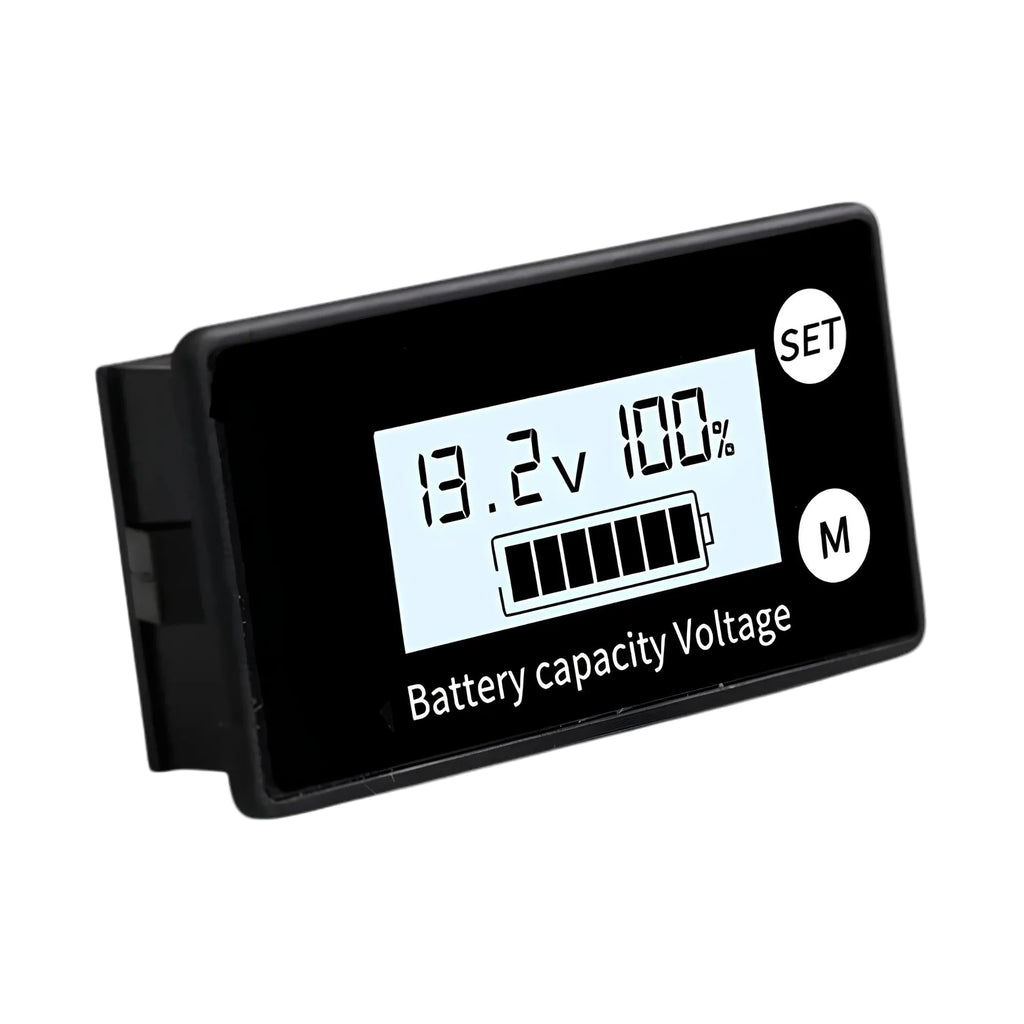

Digital Battery Capacity Meter LCD voltage tester displaying 13.2V and 100% charge on a white background

Digital Battery Capacity Meter

Clean White OLED Display
$54.95
$54.95 $59.95
Skip to product information
Digital Battery Capacity Meter LCD voltage tester displaying 13.2V and 100% charge on a white background
  • Digital Battery Capacity Meter LCD voltage tester displaying 13.2V and 100% charge on a white background

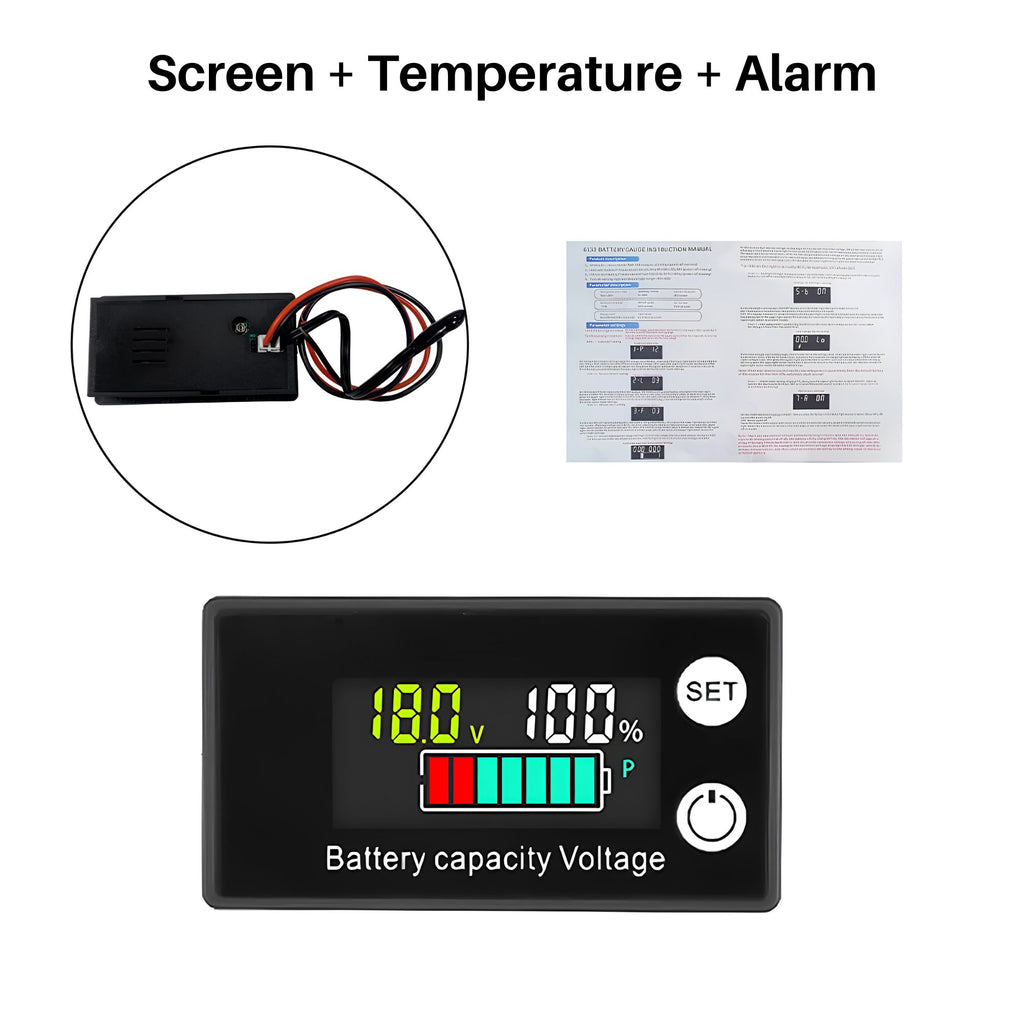

  • A battery monitoring controller shown on a white background, with text reading 'Screen + Temperature + Alarm' above it. The main product is a rectangular black digital display unit labeled 'Battery capacity Voltage' with a screen showing 18.

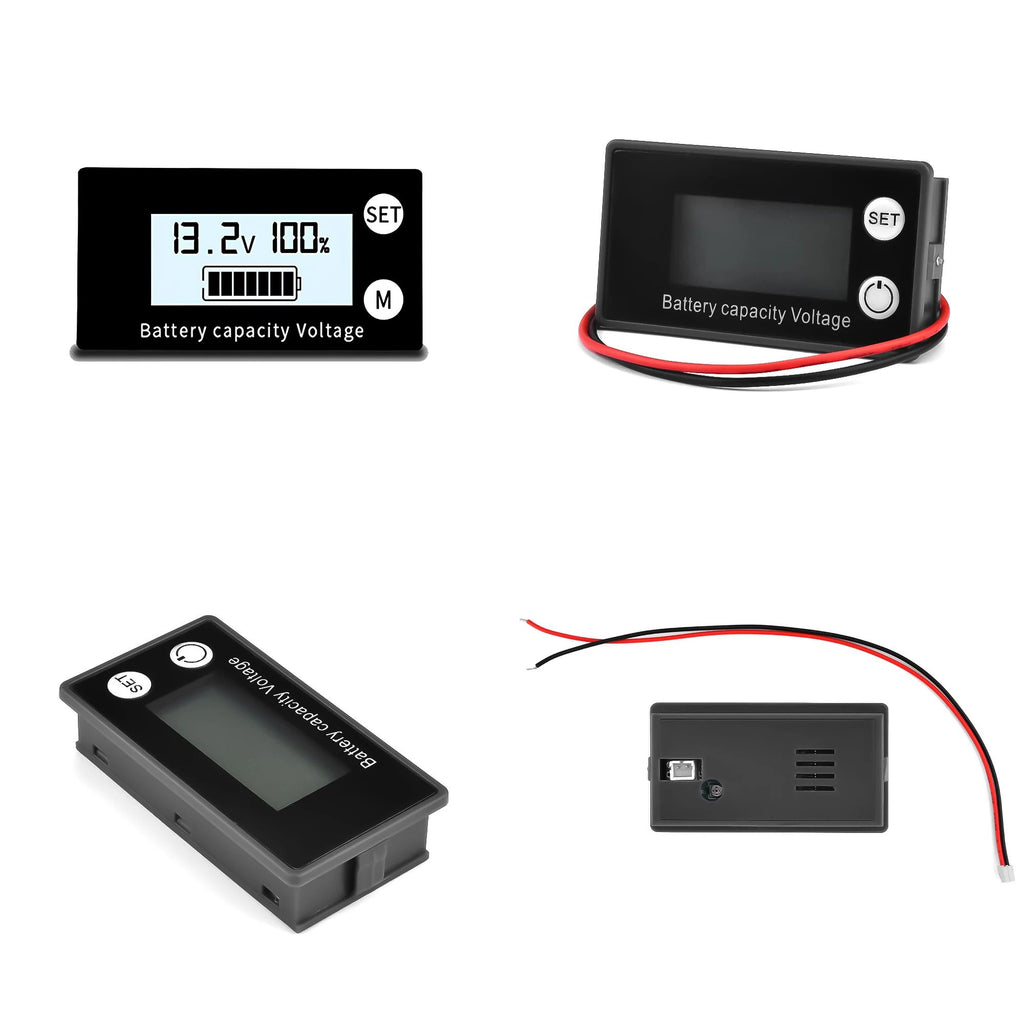

  • Four views of a black digital battery capacity voltage meter and its wiring components on a white background, including front displays with LCD screens and the back panel with red and black wires.

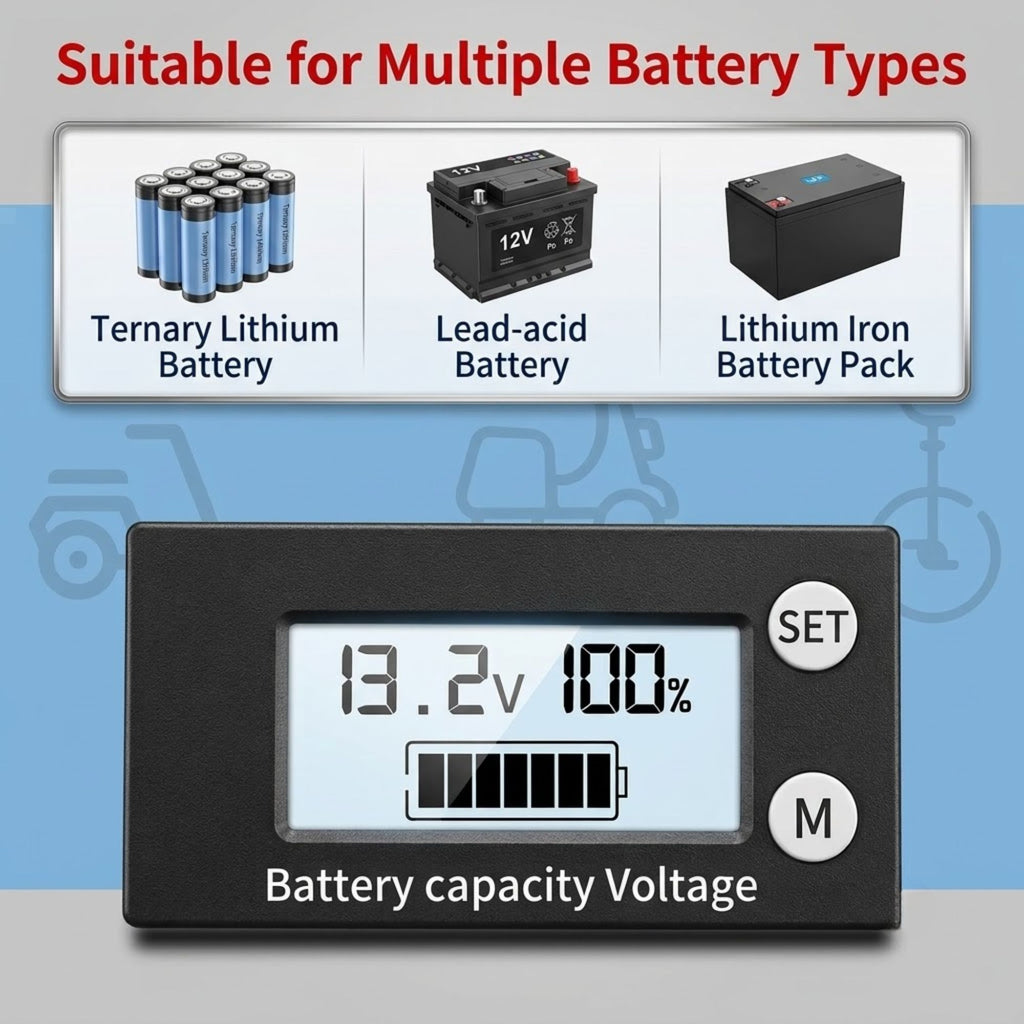

  • A digital battery monitoring display unit with a black casing and LCD screen showing 13.2V and 100% battery level, alongside informational graphics for compatible battery types including ternary lithium, lead-acid, and lithium iron battery packs.

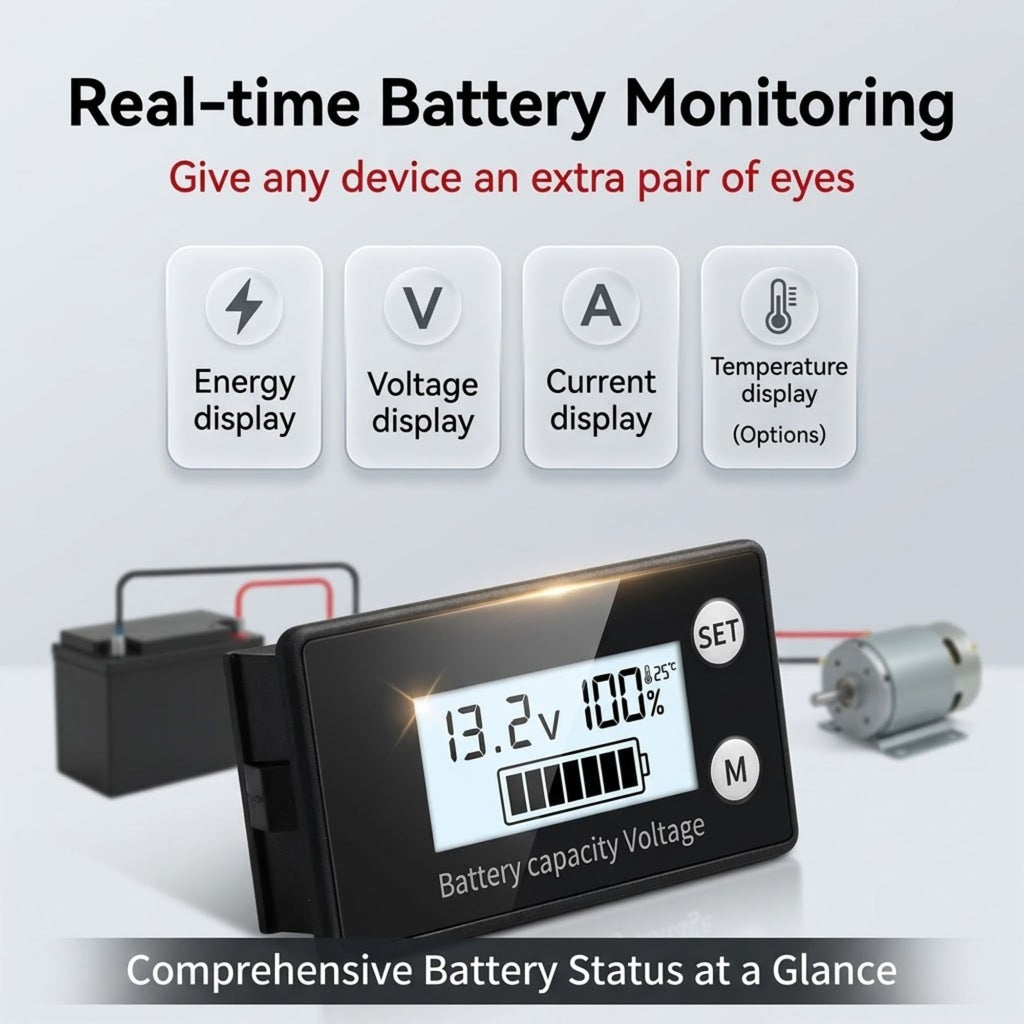

  • A digital battery monitoring device with a black faceplate and LCD display, shown connected to a battery and a small motor. The image includes marketing text highlighting real-time battery monitoring features such as energy display, voltage display, current display, and temperature display.

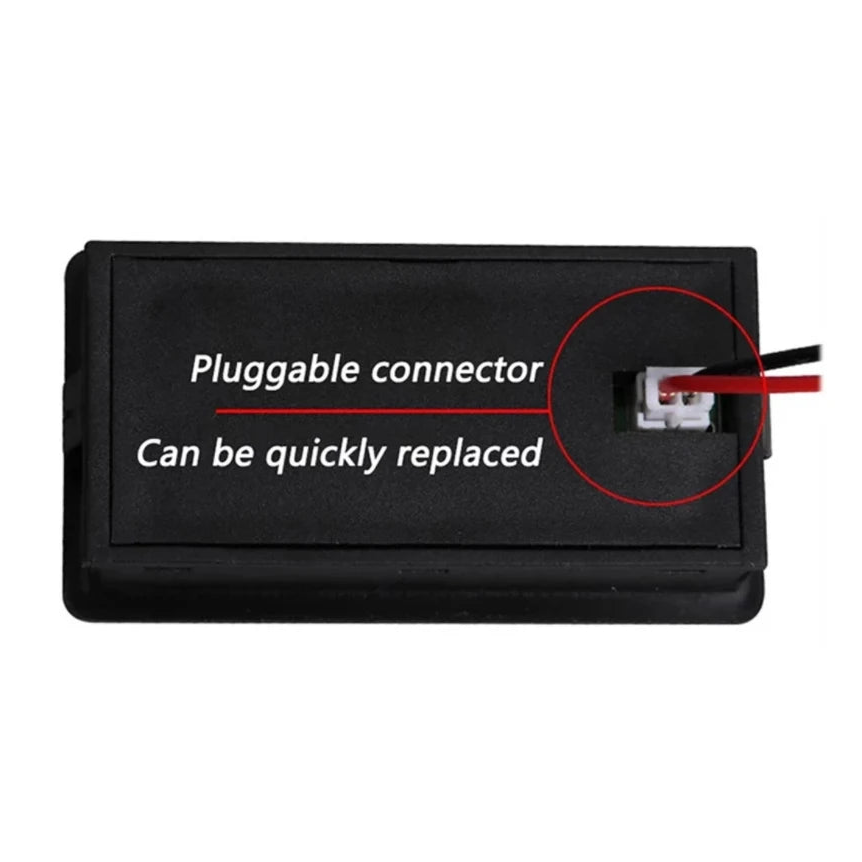

  • Digital Battery Capacity Meter pluggable connector that can be quickly replaced

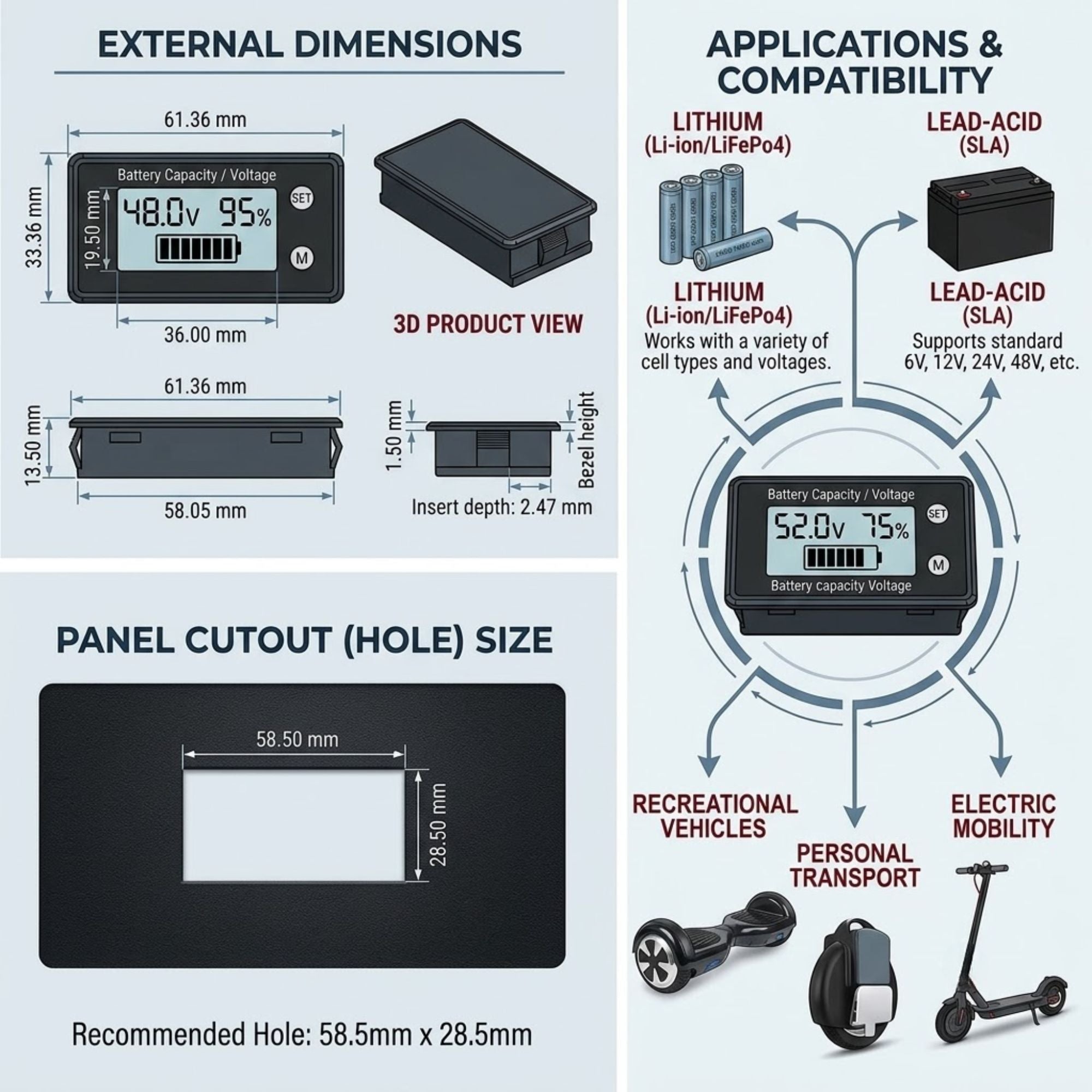

  • An infographic detailing the dimensions, cutout size, and compatibility of a battery monitoring device. The left side shows external dimensions (61.
  • Digital Battery Capacity Meter LCD voltage tester displaying 13.2V and 100% charge on a white background
  • A battery monitoring controller shown on a white background, with text reading 'Screen + Temperature + Alarm' above it. The main product is a rectangular black digital display unit labeled 'Battery capacity Voltage' with a screen showing 18.
  • Four views of a black digital battery capacity voltage meter and its wiring components on a white background, including front displays with LCD screens and the back panel with red and black wires.
  • A digital battery monitoring display unit with a black casing and LCD screen showing 13.2V and 100% battery level, alongside informational graphics for compatible battery types including ternary lithium, lead-acid, and lithium iron battery packs.
  • A digital battery monitoring device with a black faceplate and LCD display, shown connected to a battery and a small motor. The image includes marketing text highlighting real-time battery monitoring features such as energy display, voltage display, current display, and temperature display.
  • Digital Battery Capacity Meter pluggable connector that can be quickly replaced
  • An infographic detailing the dimensions, cutout size, and compatibility of a battery monitoring device. The left side shows external dimensions (61.
Digital Battery Capacity Meter

Digital Battery Capacity Meter

$54.95
$54.95 $59.95
Display Type
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Description

Monitor battery health at a glance with a compact digital indicator that displays real-time voltage and capacity for lead-acid and lithium systems.

  • Wide Voltage Range: Detects voltage between DC8-100V, covering 12V, 24V, 36V, 48V, 60V, 72V, and 84V battery configurations.
  • Multi-Chemistry Support: Compatible with lead-acid batteries and ternary lithium (L-series) and lithium iron phosphate (F-series) cells.
  • Power-Off Memory: Retains battery type settings even after the power source is disconnected, so there is no need to reconfigure after reinstalling.
  • Adjustable Calibration: Includes a potentiometer for fine-tuning accuracy to within plus or minus 1 percent.
  • Compact LCD Display: Fits into a 58.5 x 28.5mm panel cut-out, with a refresh rate of 500 milliseconds for near-instant readings.
Specifications
  • Voltage Detection Range: DC8-100V
  • Working Current: ≤15mA
  • Detection Accuracy: ±1%
  • Panel Opening Size: 58.5 x 28.5mm
  • Included (Clean White OLED): 1x Battery Capacity Indicator (White Display), 1x Connection Header, 1x Wiring Harness.
  • Included (HD Multi-Colour): 1x Battery Capacity Indicator (Multi-Colour Display), 1x Connection Header, 1x Wiring Harness.
