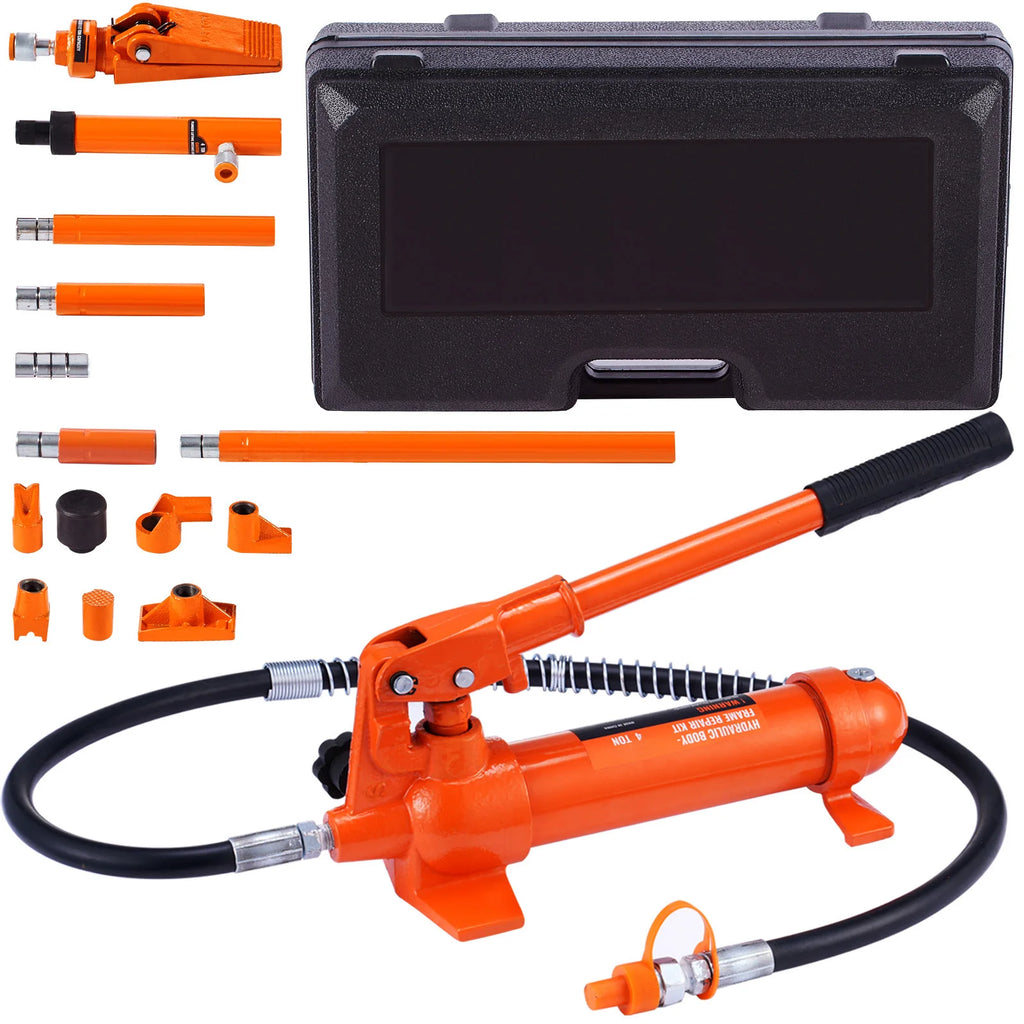

  • Hydraulic Porta Power Kit fully unboxed showing the hydraulic ram, hand pump, hose and attachment heads in a carry case

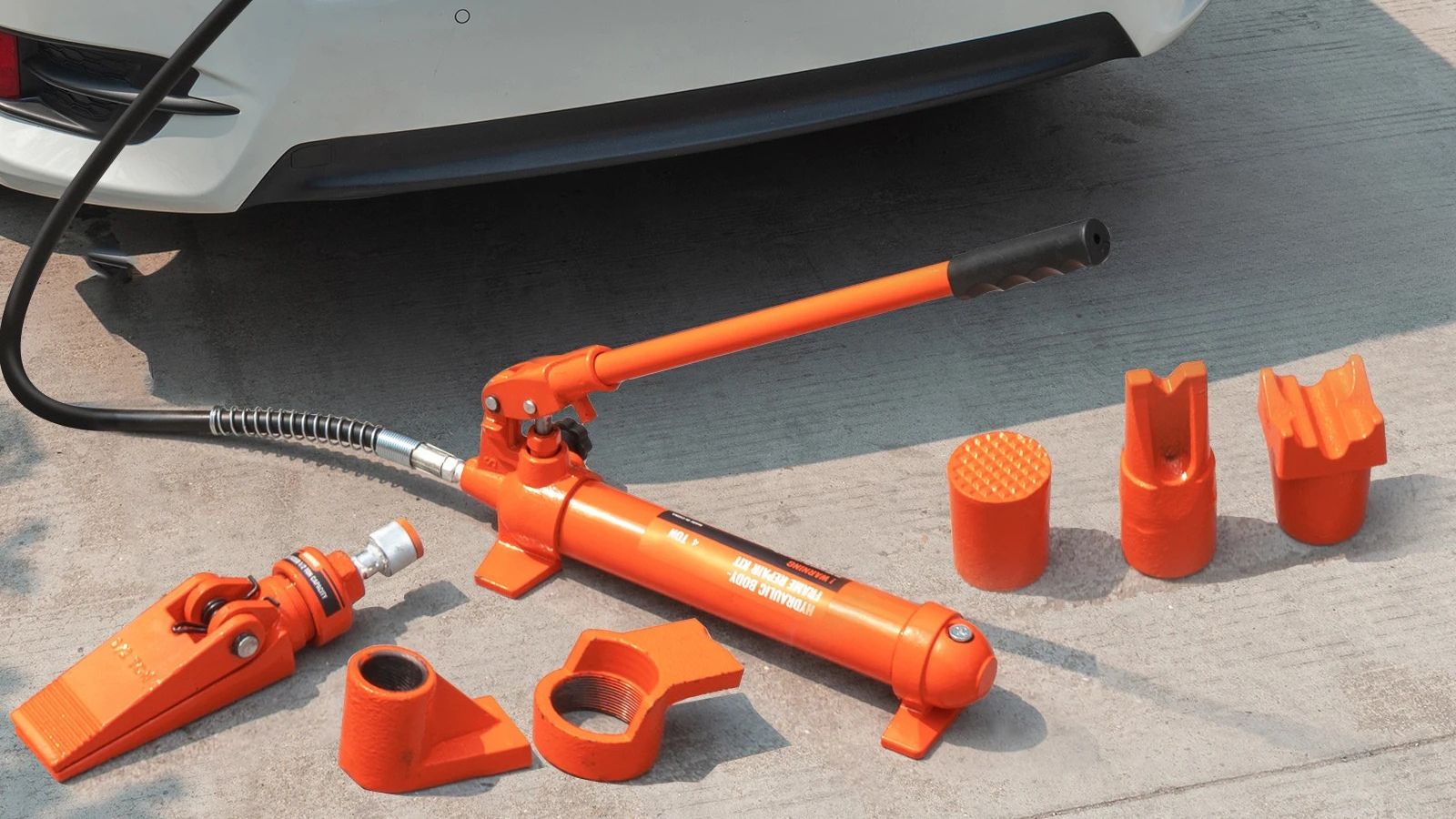

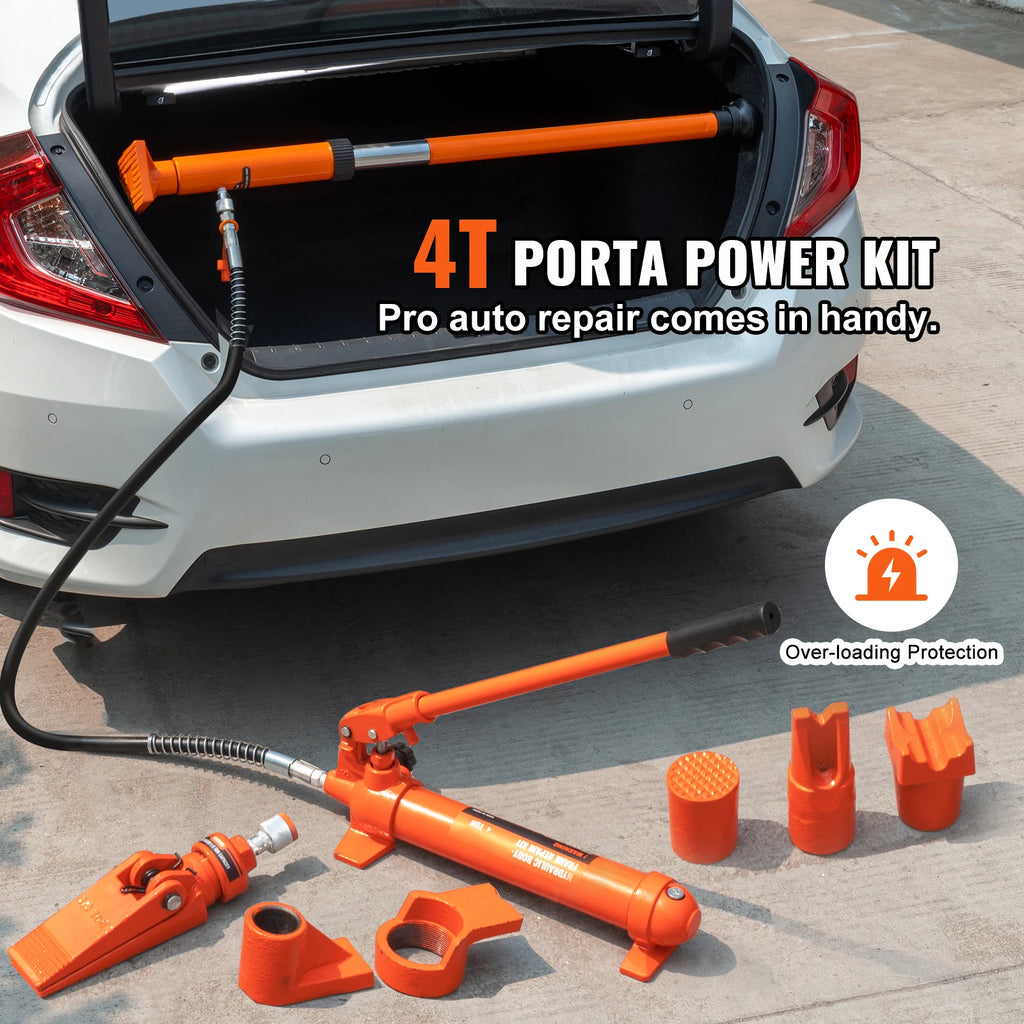

  • 4 Tonne Hydraulic Porta Power Kit being used from a car boot for roadside auto repair

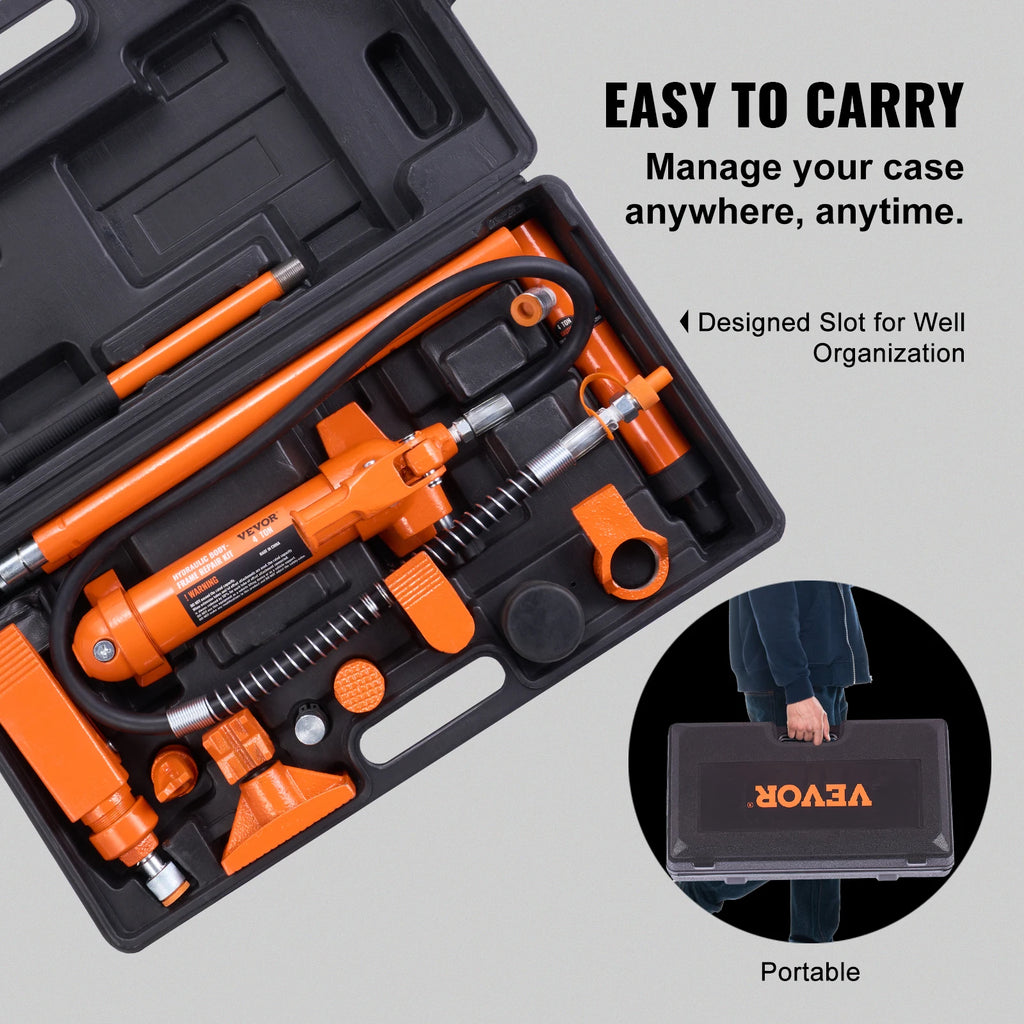

  • Hydraulic Porta Power Kit packed neatly into its portable carry case for storage and transport

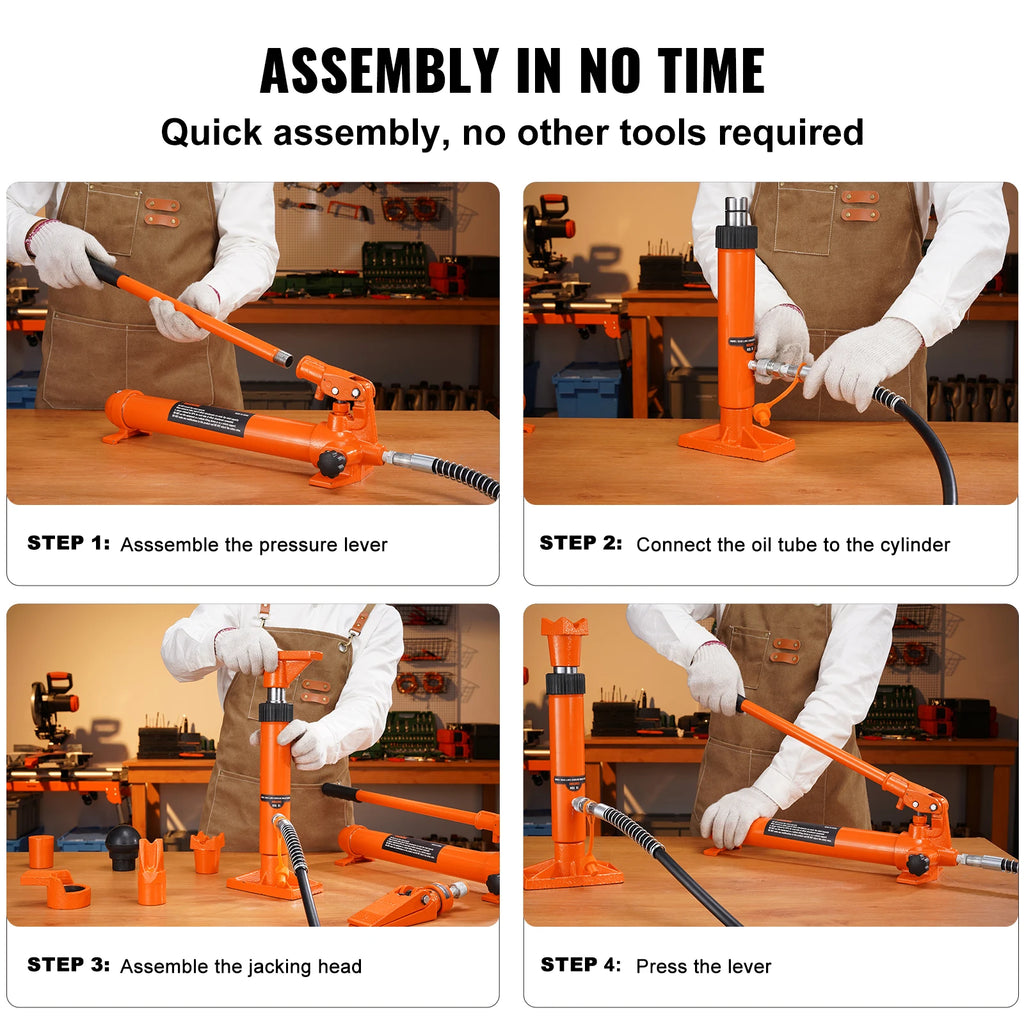

  • Four-step assembly instructions for the Hydraulic Porta Power Kit showing the pressure lever, oil tube, jacking head and lever operation

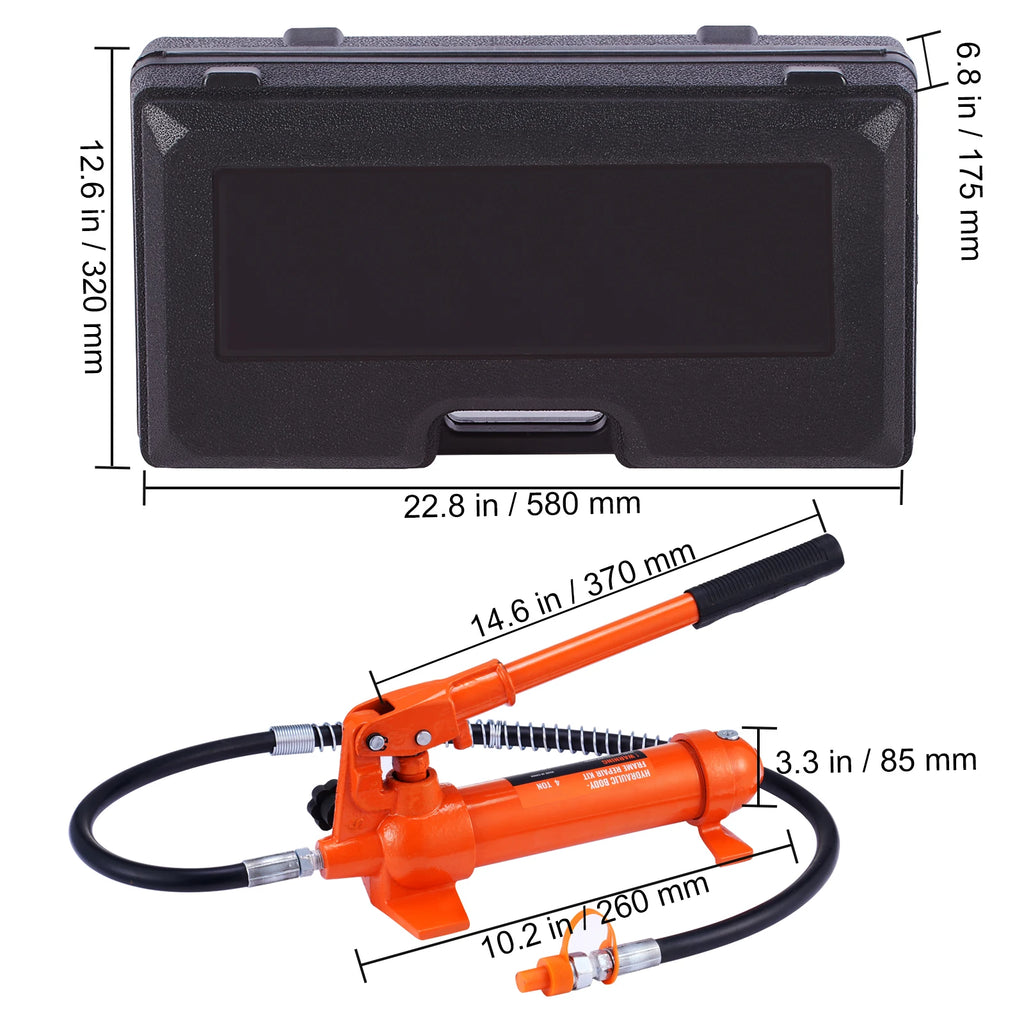

  • Product specification diagram of the smaller Hydraulic Porta Power Kit carry case with dimensions

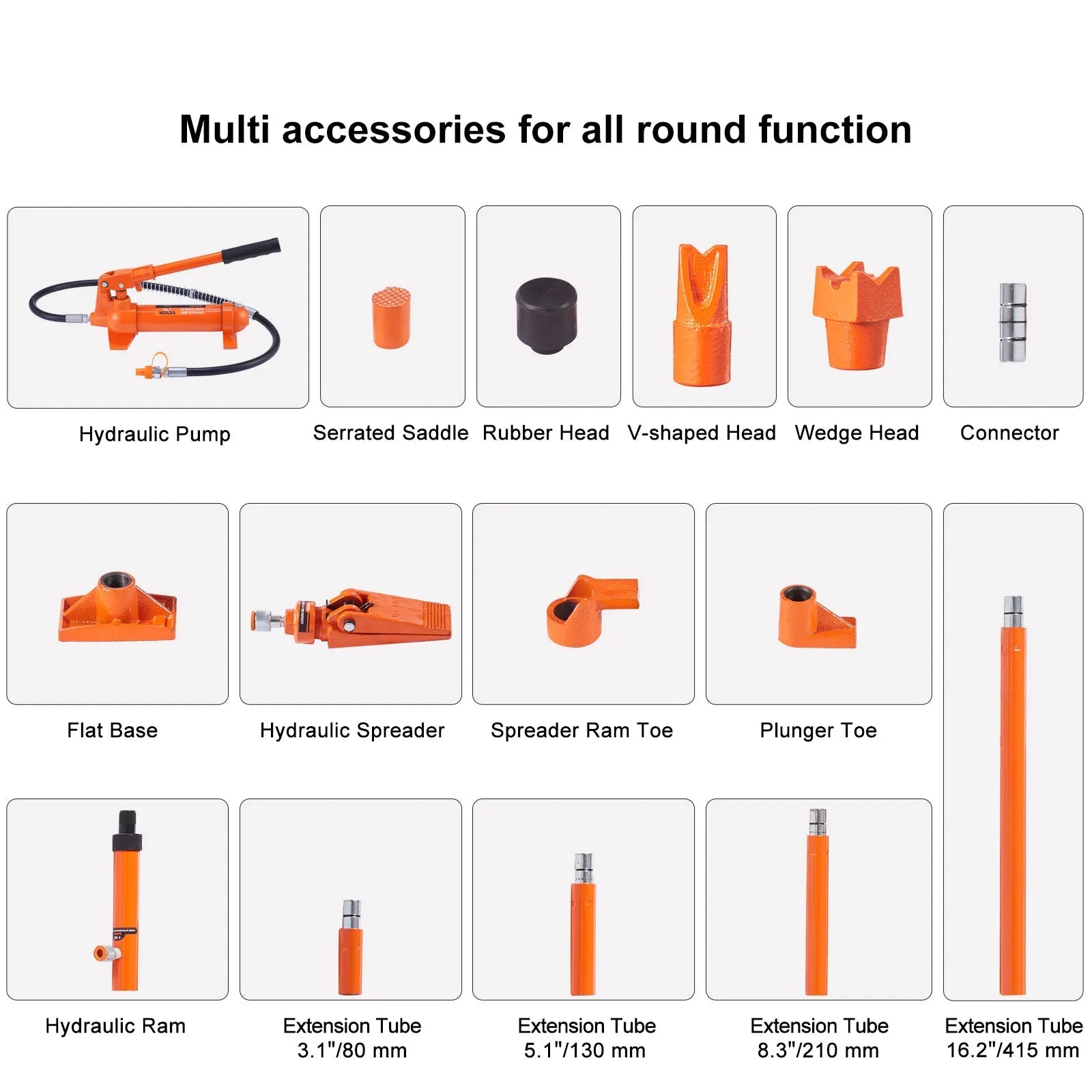

  • Diagram of all included accessories in the Hydraulic Porta Power Kit, including the hydraulic pump, saddle, rubber head, V-shaped head, wedge head, connector, flat base, spreader and extension tubes
  • Hydraulic Porta Power Kit fully unboxed showing the hydraulic ram, hand pump, hose and attachment heads in a carry case
  • 4 Tonne Hydraulic Porta Power Kit being used from a car boot for roadside auto repair
  • Hydraulic Porta Power Kit packed neatly into its portable carry case for storage and transport
  • Four-step assembly instructions for the Hydraulic Porta Power Kit showing the pressure lever, oil tube, jacking head and lever operation
  • Product specification diagram of the smaller Hydraulic Porta Power Kit carry case with dimensions
  • Diagram of all included accessories in the Hydraulic Porta Power Kit, including the hydraulic pump, saddle, rubber head, V-shaped head, wedge head, connector, flat base, spreader and extension tubes
Hydraulic Porta Power Kit

Hydraulic Porta Power Kit

$299.00
$299.00 $349.00
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Description

Push, spread, lift, and straighten damaged auto body panels with a 4-tonne hydraulic porta power kit built for workshop and roadside repairs.

  • 4-Tonne Hydraulic Pump: Delivers up to 4 tonnes of pushing force with an automatic overload system to protect the ram and pump.
  • Multi-Function Ram: Includes a spreader with 1/2-ton capacity for pressing, spreading, lifting, and clamping panels during frame repair.
  • Leak-Resistant Seal: A TPU sealing ring prevents oil leakage and maintains consistent hydraulic pressure during use.
  • Corrosion-Resistant Finish: Electrostatic powder coating protects the housing from rust, oil, and workshop wear.
  • Complete Storage Case: A blow-molded carrying case holds the pump, ram, extension tubes, and all attachments in one portable kit.
Specifications
  • Capacity: 4 tonnes (spreader: 1/2 ton)
  • Stroke: 125mm (4.9 in)
  • Main Material: QT450 (pump), Q235B (cylinder)
  • Cylinder Seal: TPU
  • Hydraulic Oil Type: HV15
  • Oil Tube Length: 1.2m (3.9 ft)
  • Toolbox Size: 580 x 320 x 175mm
  • Weight: 15kg (33.1 lbs)
  • Included: 4x Extension tubes, 1x Connector, 1x Handle, 1x Flat base, 1x Plunger toe, 1x Spreader ram toe, 1x Wedge head, 1x Serrated saddle, 1x Rubber head, 1x User manual
Shipping & Returns

Free Tracked Shipping (Australia)
All orders are processed and dispatched within 1-3 business days. Enjoy free standard tracked delivery across Australia, with a total expected arrival time of 5-9 business days. For more information, please review our full Shipping & Delivery Policy.

30-Day Hassle-Free Returns
If you change your mind or are not completely satisfied, you have 30 days from delivery to return your item in its original, unused condition for a full refund. Please note that return shipping costs are the responsibility of the customer, but we will never charge you any hidden restocking fees. For more information, please review our full Return & Refund Policy.
Contact Us

Got a question about this product? The Nexura Auto team is here to help. Please reach out via our Contact Us page, or using the details below:

Business Information

  • Business Name: Nexura Auto
  • ABN: 56 437 233 044
  • Business Address: 1/457-459 Elizabeth Street, Surry Hills NSW 2010

Customer Service Contact

  • Email: support@nexuraauto.com.au
  • Phone: 1300 103 804

Operating Hours

  • Monday to Friday | 09:00 AM to 05:00 PM (AEST)

We aim to respond to all inquiries within 24 business hours.

No Leaks. Full Power.

Auto body frame repairs at a workshop are expensive and often require booking weeks in advance.

This 4-tonne porta power kit lets you push, spread, and straighten damaged panels yourself, with a leak-proof seal that holds pressure through the full job.
