Hydraulic Long Ram Jack dimension diagram showing 66 cm retracted length and 116 cm extended length

Hydraulic Long Ram Jack

Heavy-Duty 8-Tonne Dual-Pump
$259.00
$259.00 $299.00
Skip to product information

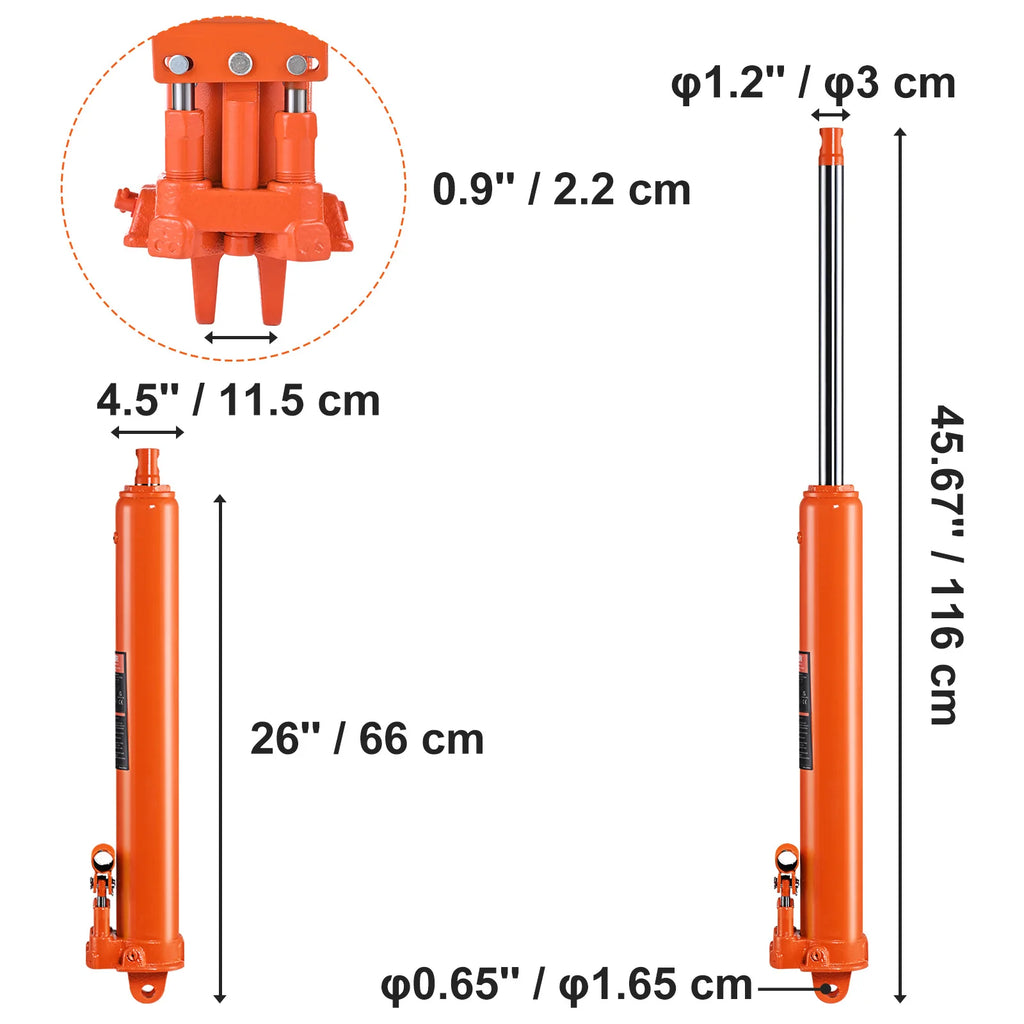

Hydraulic Long Ram Jack dimension diagram showing 66 cm retracted length and 116 cm extended length
  • Hydraulic Long Ram Jack dimension diagram showing 66 cm retracted length and 116 cm extended length

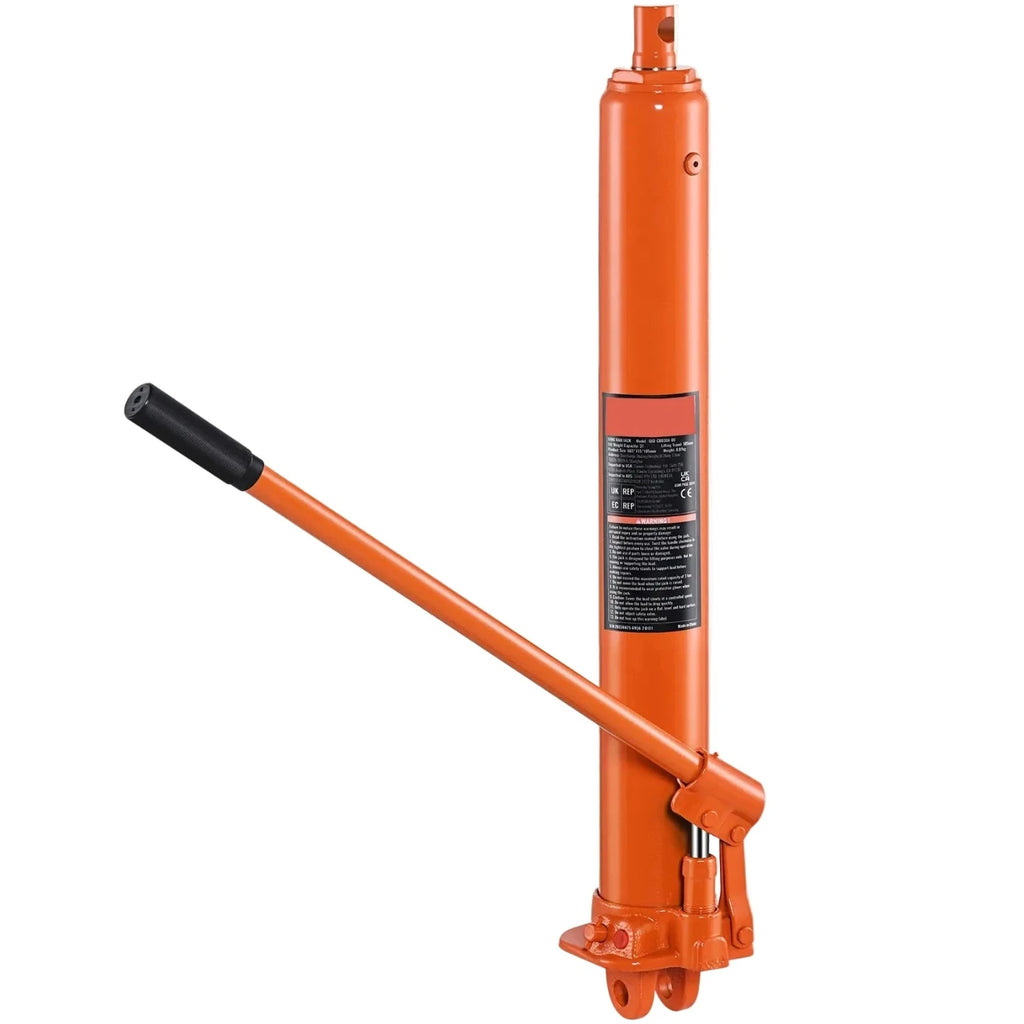

  • Hydraulic Long Ram Jack in orange with pump handle on a white background

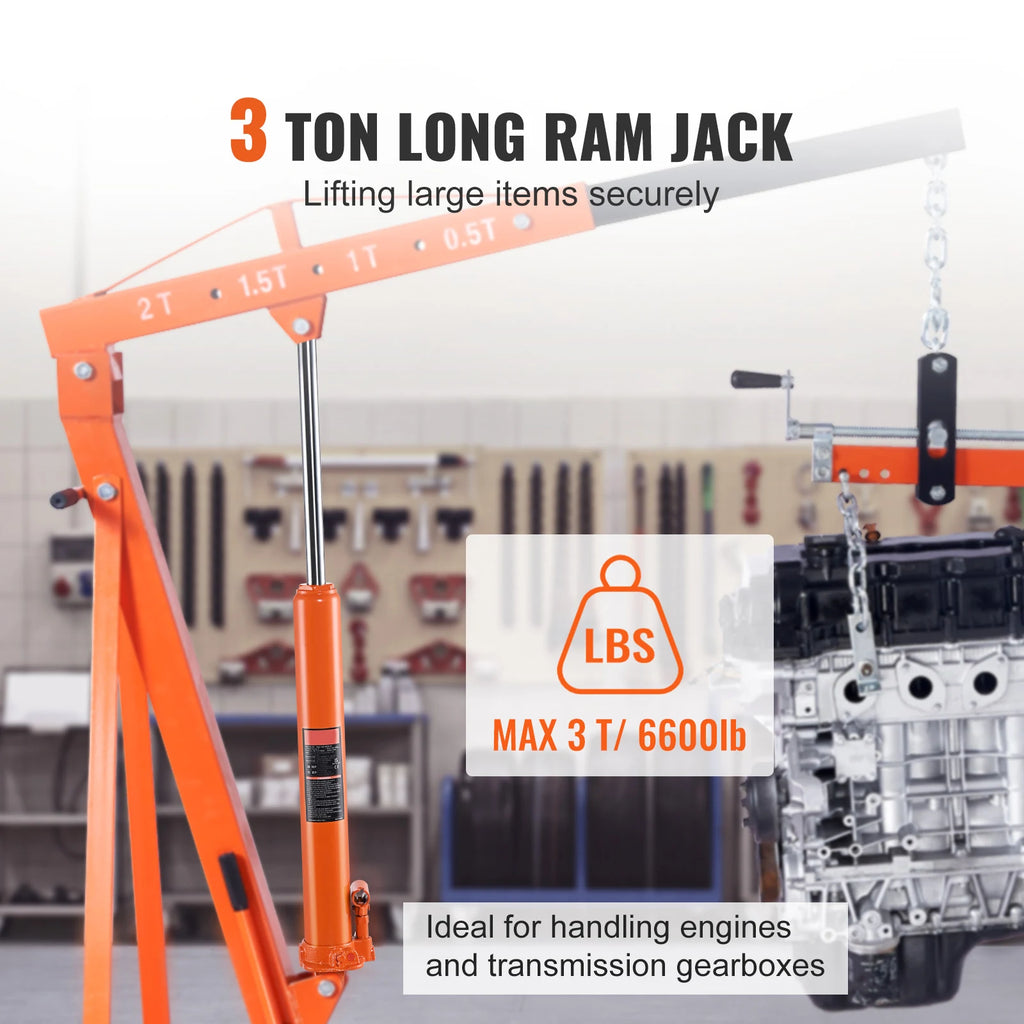

  • 3 tonne Hydraulic Long Ram Jack fitted to an engine crane lifting an engine in a workshop

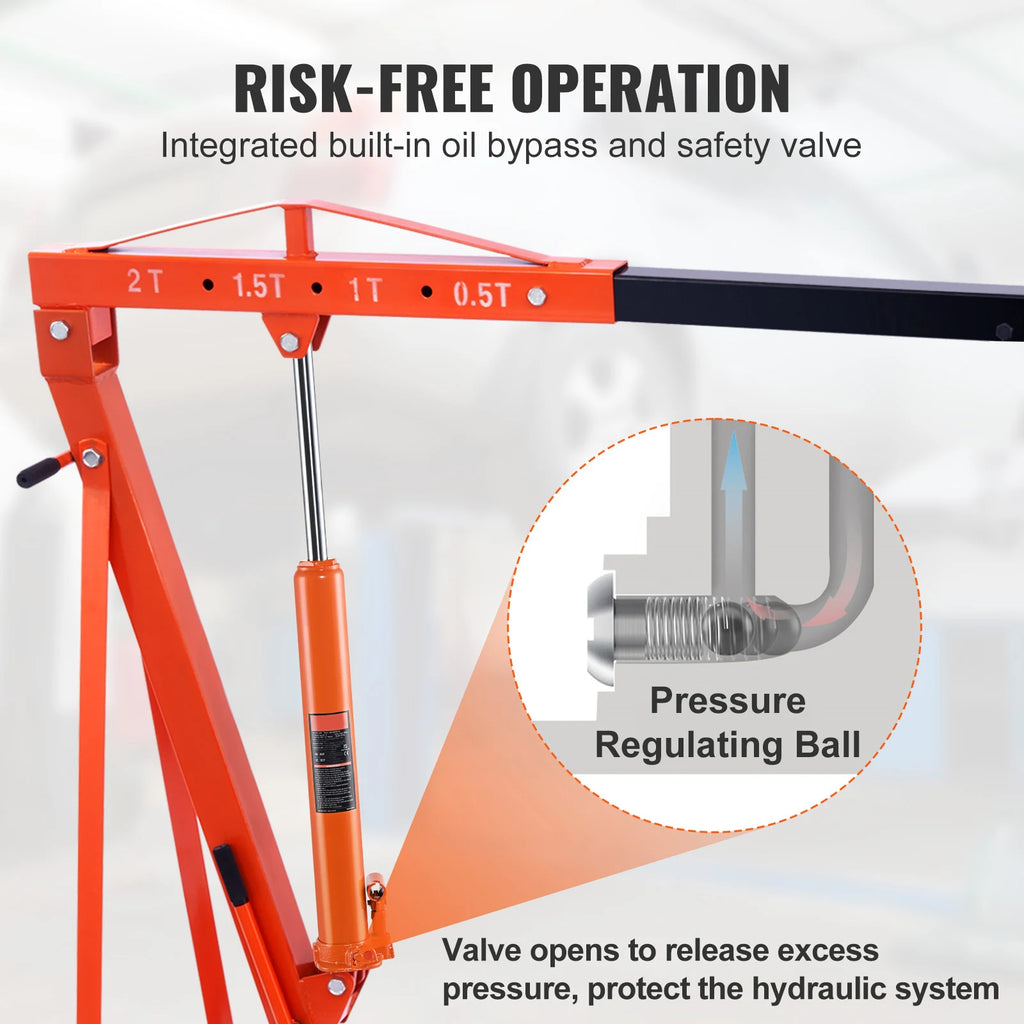

  • Hydraulic Long Ram Jack on an engine crane with close-up of the pressure regulating ball safety valve

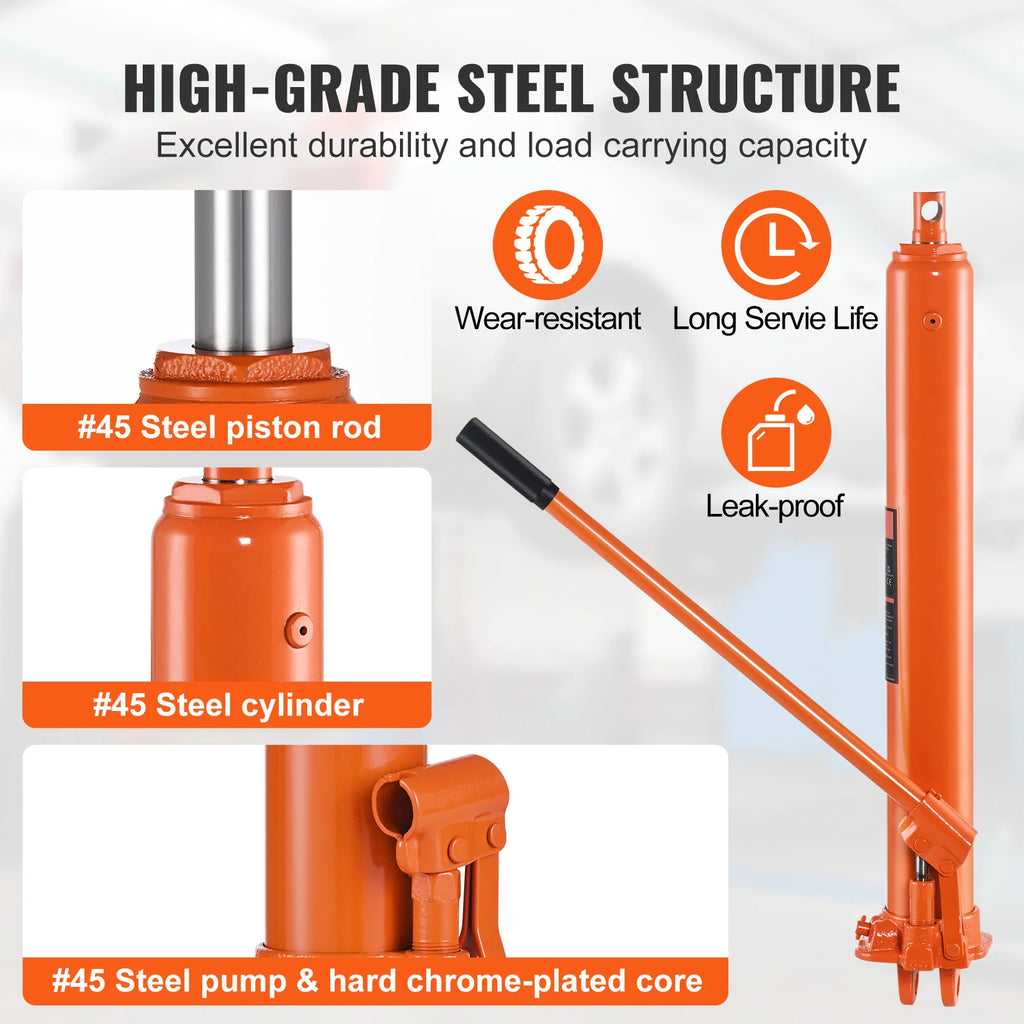

  • Hydraulic Long Ram Jack close-ups of the steel piston rod, cylinder and pump with hard chrome-plated core

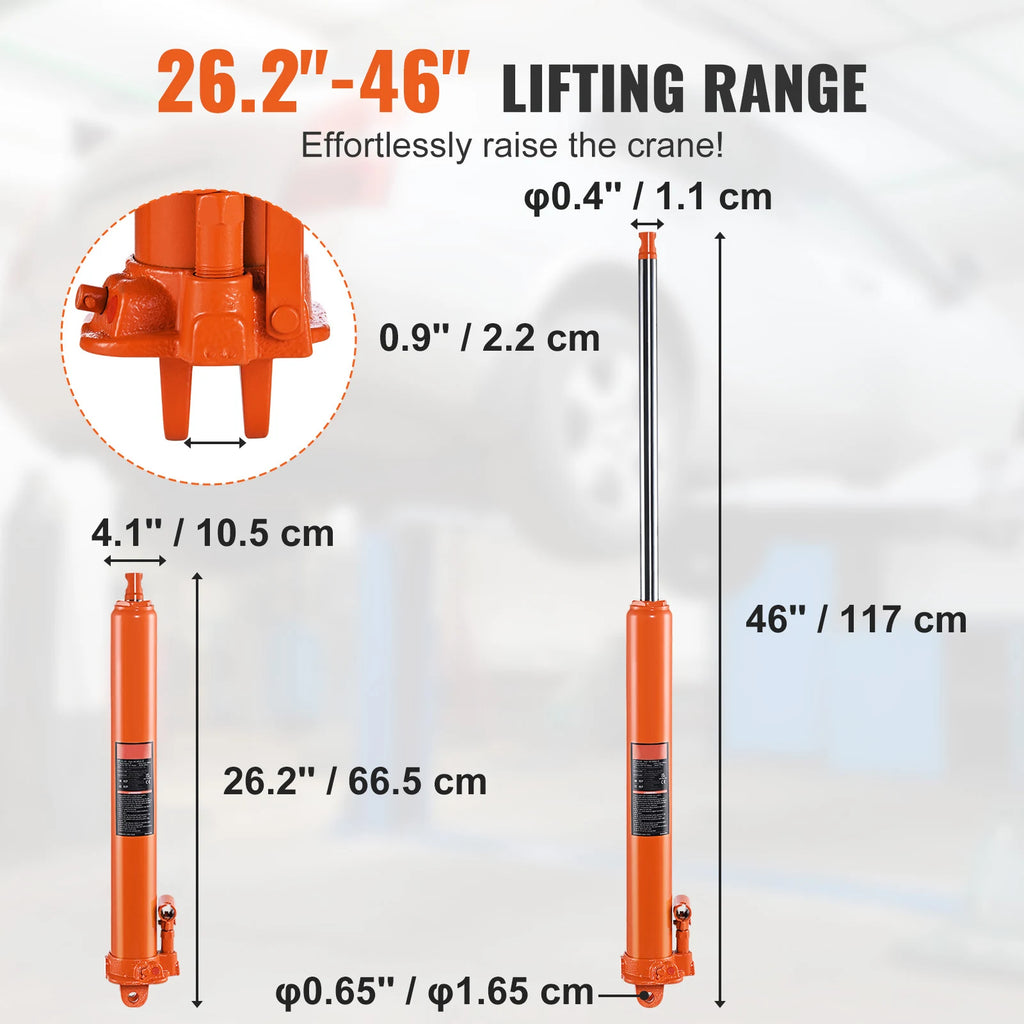

  • Hydraulic Long Ram Jack lifting range diagram from 66.5 cm retracted to 117 cm extended
  • Hydraulic Long Ram Jack dimension diagram showing 66 cm retracted length and 116 cm extended length
  • Hydraulic Long Ram Jack in orange with pump handle on a white background
  • 3 tonne Hydraulic Long Ram Jack fitted to an engine crane lifting an engine in a workshop
  • Hydraulic Long Ram Jack on an engine crane with close-up of the pressure regulating ball safety valve
  • Hydraulic Long Ram Jack close-ups of the steel piston rod, cylinder and pump with hard chrome-plated core
  • Hydraulic Long Ram Jack lifting range diagram from 66.5 cm retracted to 117 cm extended
Hydraulic Long Ram Jack

Hydraulic Long Ram Jack

$259.00
$259.00 $299.00
Configuration
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Description

Extend the lifting range of a shop crane or engine hoist with a hydraulic long ram jack featuring a clevis base and a hard chrome pump core.

  • Two Configurations: Available as a 3-tonne single pump or an 8-tonne dual pump, so lifting capacity can be matched to the crane and the job.
  • Long Stroke Lifting Range: The 3-tonne model provides a 505 mm (19.9 in) lifting stroke and a working height of 665 mm to 1,170 mm.
  • Clevis Base Mounting: A clevis base allows attachment to most shop cranes and engine hoists used in garages, workshops, farms and off-road support.
  • Durable Steel Construction: Built from #45 steel with a hard chrome coating on the pump core and a 28 mm hydraulic cylinder that reduces the pressure needed to move a load.
  • Controlled Lowering: A Y-ring plunger design and a gradually released oil return valve control piston descent and reduce the risk of sudden drops.
Specifications
  • Type: Hydraulic long ram jack with clevis base
  • 3-Tonne Model Capacity: 3 tonne (6,600 lb)
  • 3-Tonne Model Lifting Stroke: 505 mm (19.9 in)
  • 3-Tonne Model Height Range: 665 mm (26.2 in) minimum to 1,170 mm (46 in) maximum
  • 3-Tonne Model Dimensions: 665 x 115 x 105 mm (26.2 x 4.5 x 4.1 in)
  • 3-Tonne Model Net Weight: 8.88 kg (19.58 lb)
  • Material: #45 steel body with hard chrome coated pump core
  • Handle: Rubber-coated grip
  • Certification: CE
  • Variant Inclusions: Compact 3-Tonne Single-Pump: 1x 3-tonne hydraulic long ram jack with single piston pump and clevis base. Heavy-Duty 8-Tonne Dual-Pump: 1x 8-tonne hydraulic long ram jack with dual piston pump and clevis base.
  • Safety Note: Use only with a crane or hoist rated for the load. Never stand or work beneath a suspended load.
Shipping & Returns

Free Tracked Shipping (Australia)
All orders are processed and dispatched within 1-3 business days. Enjoy free standard tracked delivery across Australia, with a total expected arrival time of 5-9 business days. For more information, please review our full Shipping & Delivery Policy.

30-Day Hassle-Free Returns
If you change your mind or are not completely satisfied, you have 30 days from delivery to return your item in its original, unused condition for a full refund. Please note that return shipping costs are the responsibility of the customer, but we will never charge you any hidden restocking fees. For more information, please review our full Return & Refund Policy.
Contact Us

Got a question about this product? The Nexura Auto team is here to help. Please reach out via our Contact Us page, or using the details below:

Business Information

  • Business Name: Nexura Auto
  • ABN: 56 437 233 044
  • Business Address: 1/457-459 Elizabeth Street, Surry Hills NSW 2010

Customer Service Contact

  • Email: support@nexuraauto.com.au
  • Phone: 1300 103 804

Operating Hours

  • Monday to Friday | 09:00 AM to 05:00 PM (AEST)

We aim to respond to all inquiries within 24 business hours.

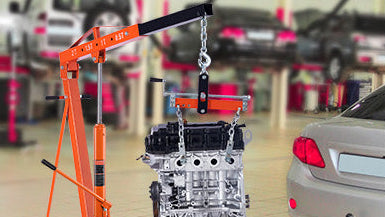

Orange hydraulic lift with height adjustment details and usage scenarios.
