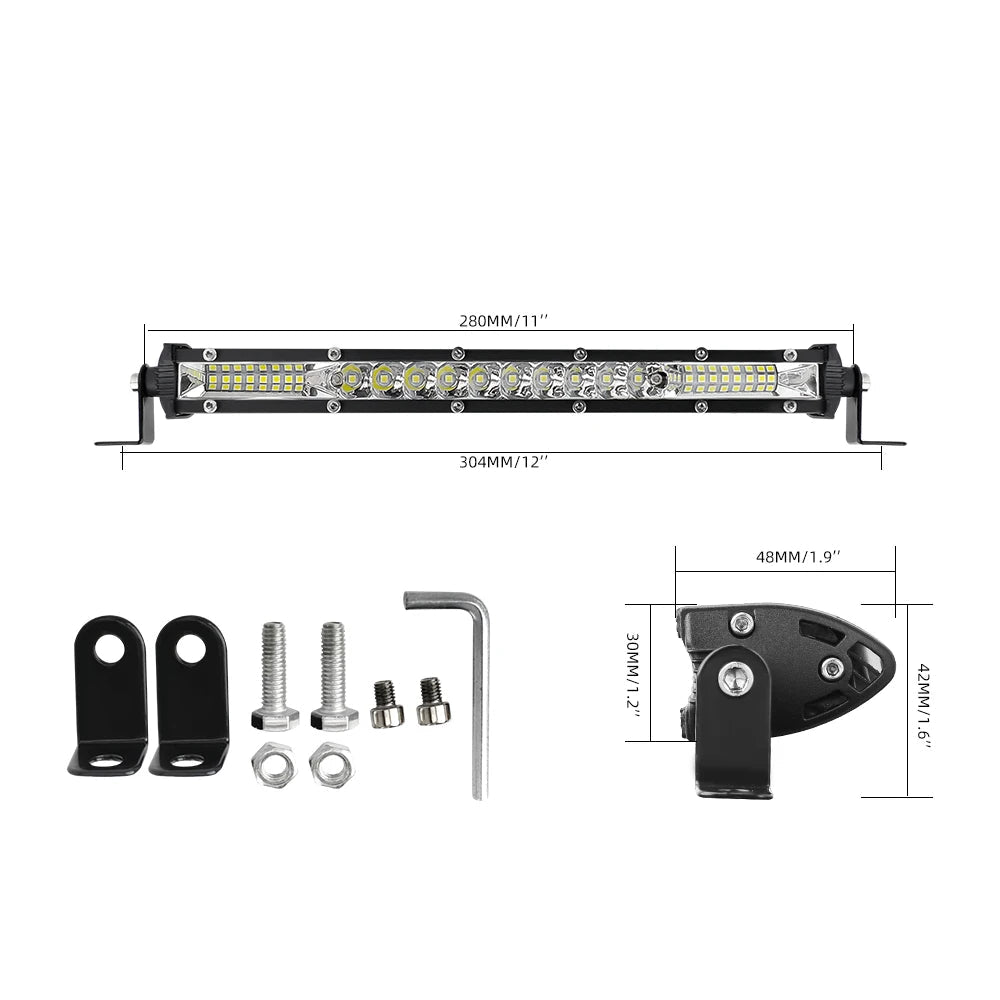

12 inch 52W LED light bar dimension and mounting bracket diagram

Slim LED Light Bar

12" Slim 52W (Compact)
$135.00
$135.00 $165.00
Skip to product information
12 inch 52W LED light bar dimension and mounting bracket diagram
  • 12 inch 52W LED light bar dimension and mounting bracket diagram

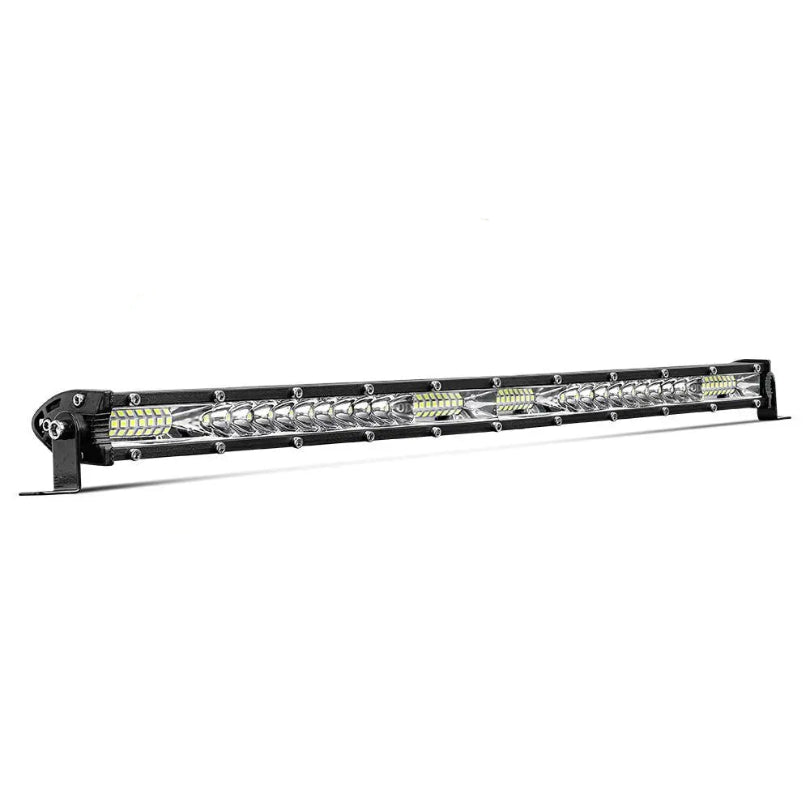

  • 22 inch LED light bar with spot and flood beam on white background

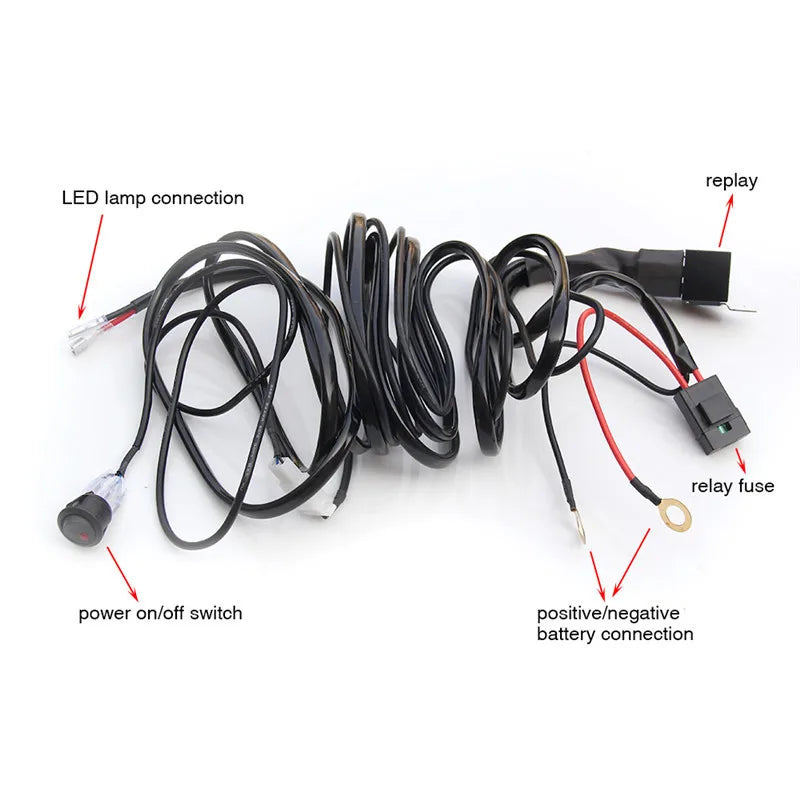

  • LED light bar wiring harness diagram showing relay, switch and battery connection

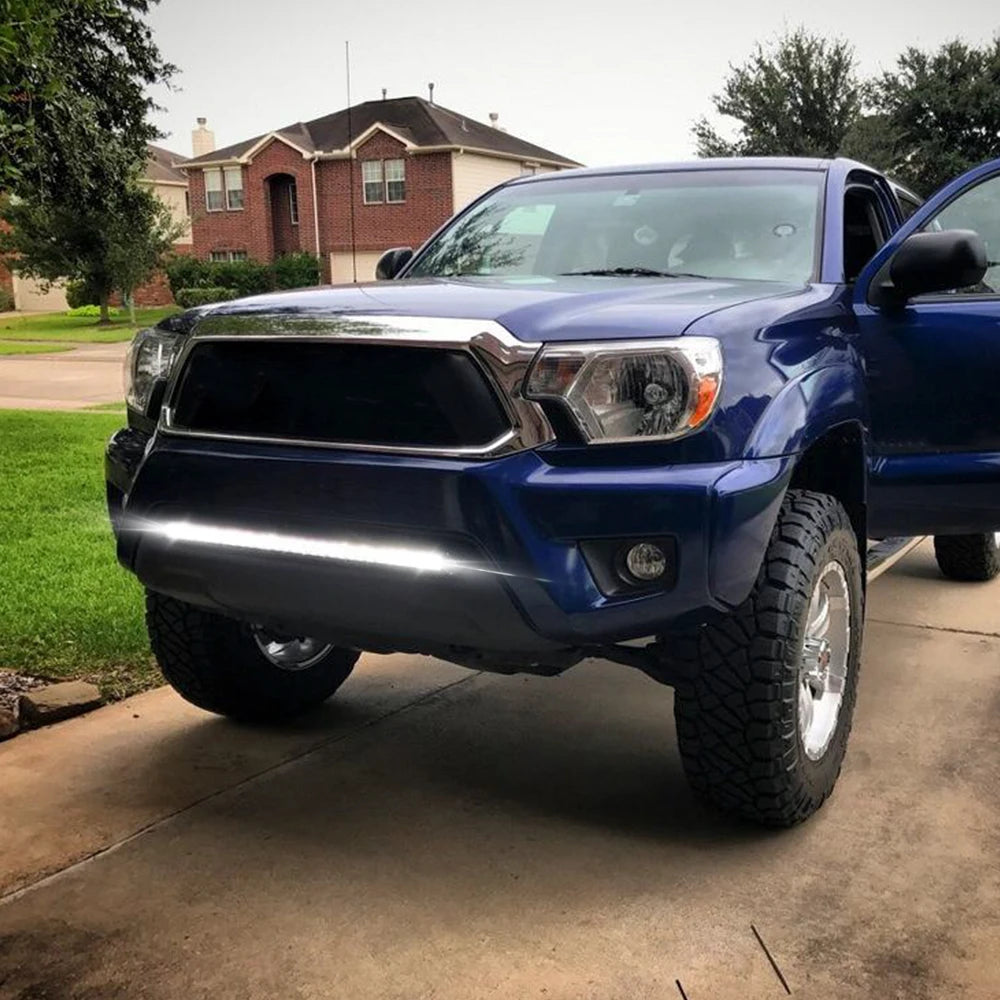

  • Blue truck with LED light bar mounted on front bumper in a driveway

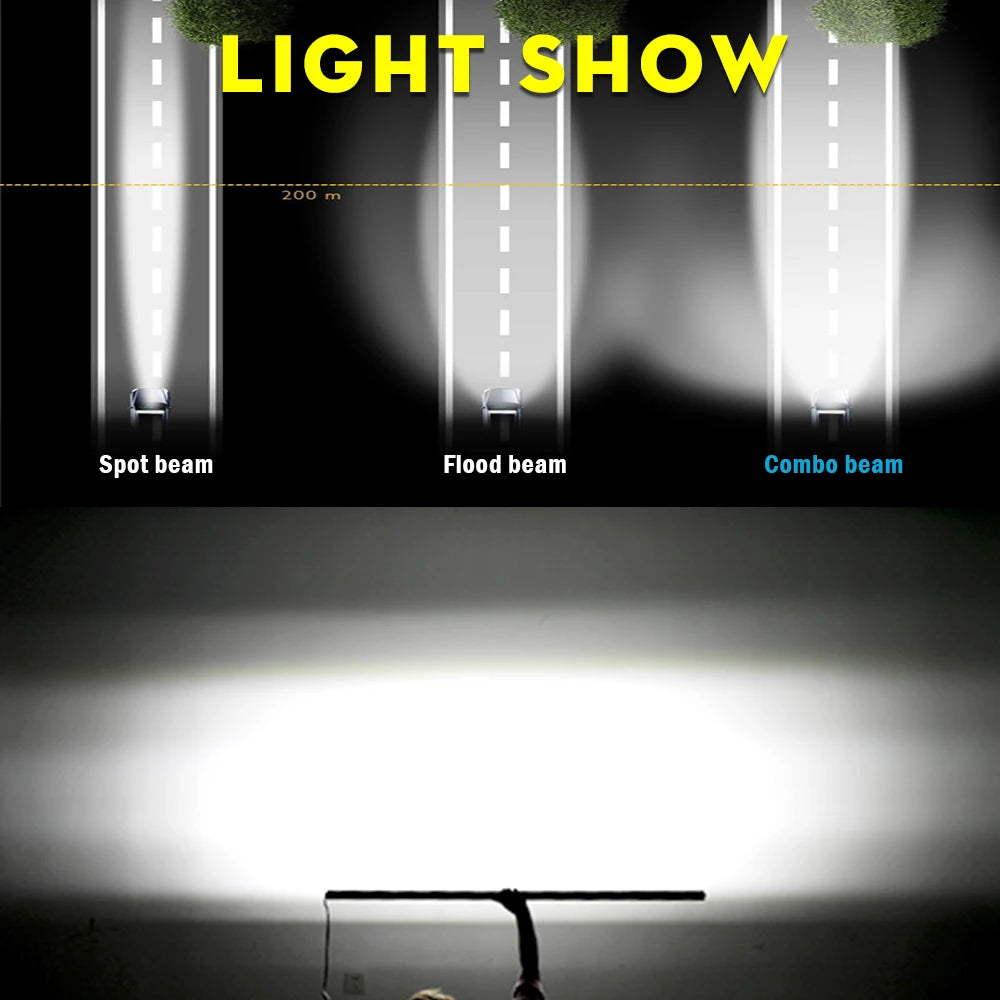

  • Comparison of spot beam, flood beam and combo beam light patterns from LED light bar
  • LED light bar mounted on vehicle shining across rocky mountain terrain, IP68 waterproof rated

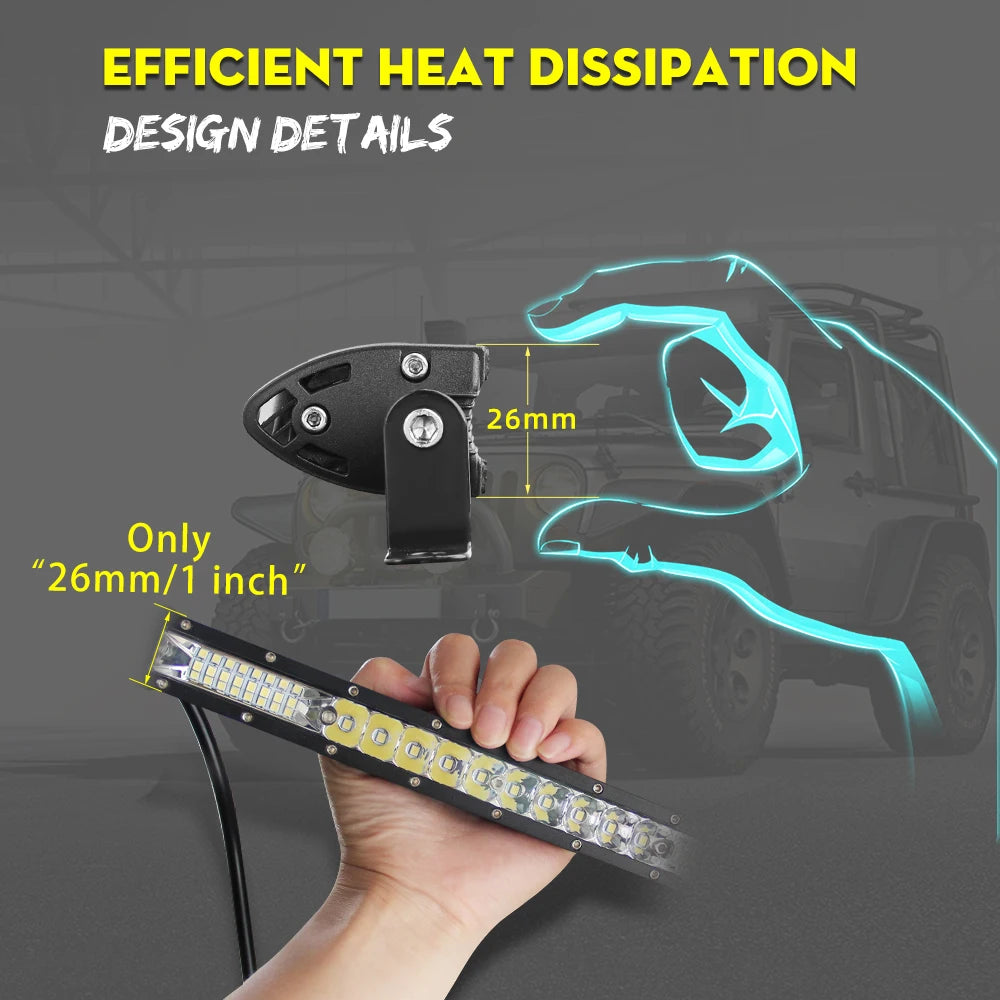

  • Hand holding slim 26mm thick LED light bar showing compact heat dissipation design

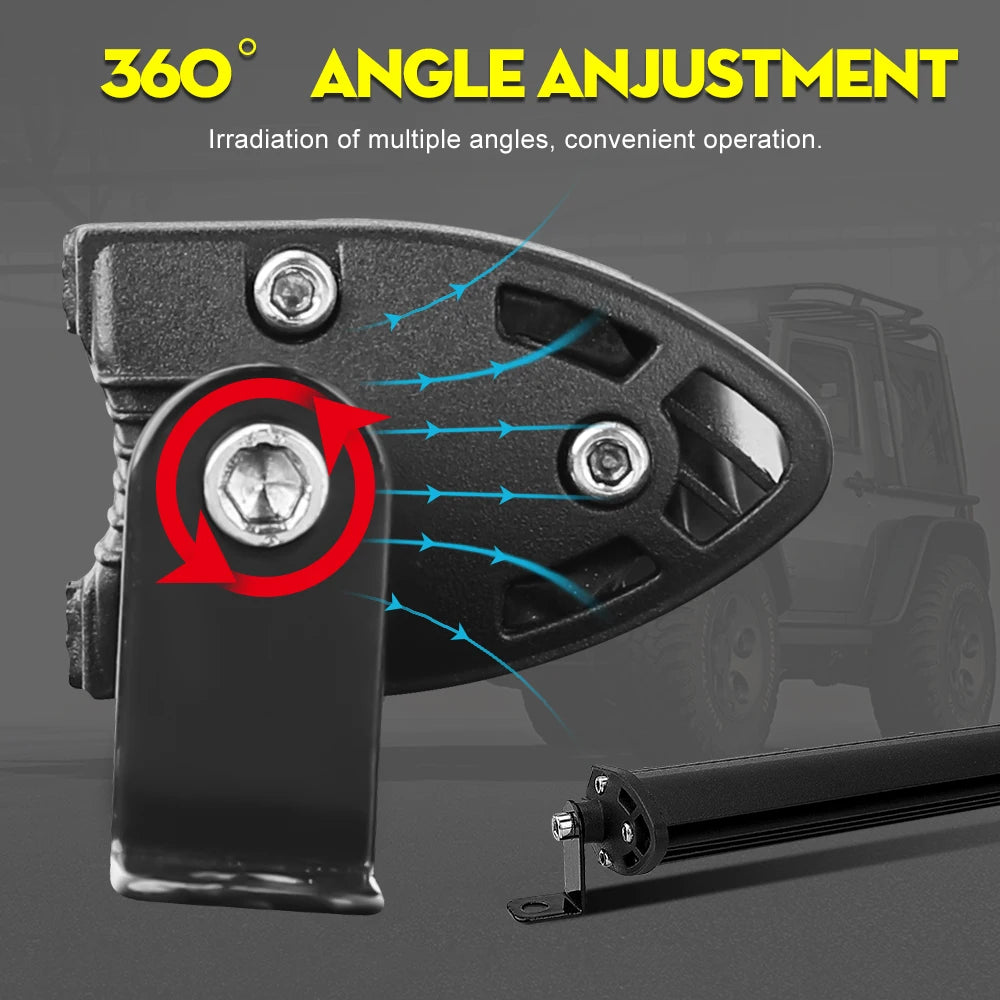

  • 360 degree adjustable mounting bracket on the LED light bar
  • 12 inch 52W LED light bar dimension and mounting bracket diagram
  • 22 inch LED light bar with spot and flood beam on white background
  • LED light bar wiring harness diagram showing relay, switch and battery connection
  • Blue truck with LED light bar mounted on front bumper in a driveway
  • Comparison of spot beam, flood beam and combo beam light patterns from LED light bar
  • LED light bar mounted on vehicle shining across rocky mountain terrain, IP68 waterproof rated
  • Hand holding slim 26mm thick LED light bar showing compact heat dissipation design
  • 360 degree adjustable mounting bracket on the LED light bar
Slim LED Light Bar

Slim LED Light Bar

$135.00
$135.00 $165.00
Size Configuration
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Description

Add long-range spot and flood combo lighting to any 12V or 24V vehicle with a slim, IP68-rated LED light bar built for off-road, work and emergency use.

  • Spot Flood Combo Beam: Combines focused spot lighting for distance with wide flood coverage for close-range visibility in a single beam pattern.
  • IP68 Waterproof Rating: Sealed aluminium housing withstands rain, dust, mud and submersion for reliable performance in harsh conditions.
  • Universal 12V/24V Compatibility: Operates on 10-30V DC, fitting cars, 4WDs, trucks, tractors and boats without a separate converter.
  • Long-Life LED Output: Rated for over 50,000 hours of use with a 6500K colour temperature for clear, natural visibility.
  • Stainless Steel Mounting Bracket: Includes a corrosion-resistant bracket and 3M waterproof wiring kit for a secure, weatherproof install.
Specifications
  • Housing Material: Aluminium
  • Waterproof Rating: IP68
  • Colour Temperature: 6500K
  • Beam Pattern: Spot Flood Combo
  • Operating Voltage: DC 10-30V (12V/24V vehicles)
  • Certification: CE
  • Included (12" Slim 52W): 1x 12" 52W LED Light Bar, 1x Mounting Bracket Kit, 1x 3M Waterproof Wiring Kit
  • Included (22" Slim 104W): 1x 22" 104W LED Light Bar, 1x Mounting Bracket Kit, 1x 3M Waterproof Wiring Kit
Shipping & Returns

Free Tracked Shipping (Australia)
All orders are processed and dispatched within 1-3 business days. Enjoy free standard tracked delivery across Australia, with a total expected arrival time of 5-9 business days. For more information, please review our full Shipping & Delivery Policy.

30-Day Hassle-Free Returns
If you change your mind or are not completely satisfied, you have 30 days from delivery to return your item in its original, unused condition for a full refund. Please note that return shipping costs are the responsibility of the customer, but we will never charge you any hidden restocking fees. For more information, please review our full Return & Refund Policy.
Contact Us

Got a question about this product? The Nexura Auto team is here to help. Please reach out via our Contact Us page, or using the details below:

Business Information

  • Business Name: Nexura Auto
  • ABN: 56 437 233 044
  • Business Address: 1/457-459 Elizabeth Street, Surry Hills NSW 2010

Customer Service Contact

  • Email: support@nexuraauto.com.au
  • Phone: 1300 103 804

Operating Hours

  • Monday to Friday | 09:00 AM to 05:00 PM (AEST)

We aim to respond to all inquiries within 24 business hours.

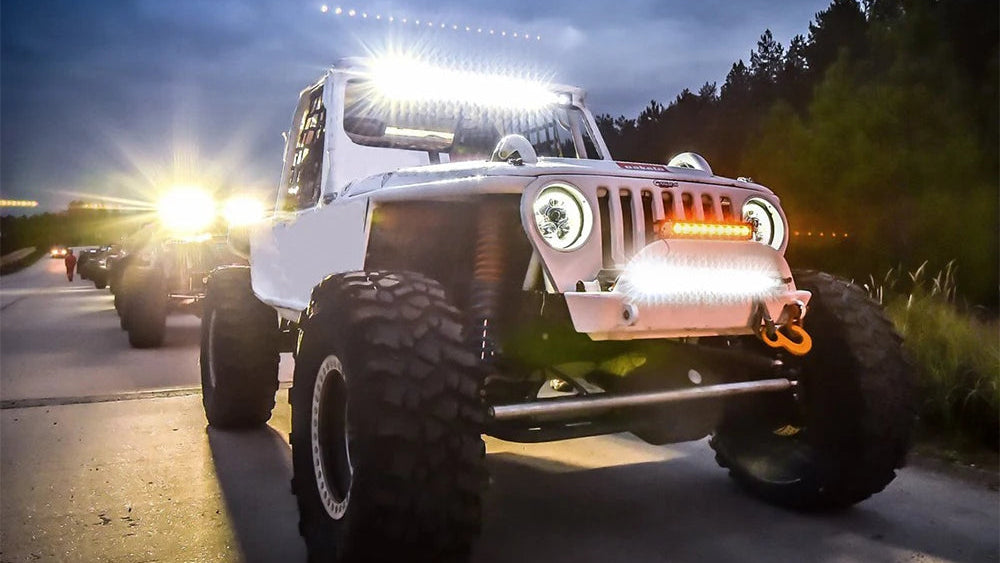

Off-road vehicle with large LED light bar on a road at night.

See Further. Work Safer.

Stock headlights and factory driving lights often leave dark gaps at the edges of the road or worksite, especially off-road or at night.

This slim light bar adds a combined spot and flood beam that lights up both the distance ahead and the immediate surroundings, and its IP68 sealing keeps it working through rain, dust and mud. Fitting 12V and 24V vehicles alike, it drops onto trucks, 4WDs, tractors and boats without extra wiring.

The NEXURA Standard

We built Nexura Auto to fix the everyday annoyances of driving. We got tired of tangled cables, dead phones, and cluttered centre consoles making a mess of our cars.

We skip the gimmicks and focus entirely on practical gear that actually works. Our products are chosen to keep your cabin organised, your devices powered, and your eyes on the road.
